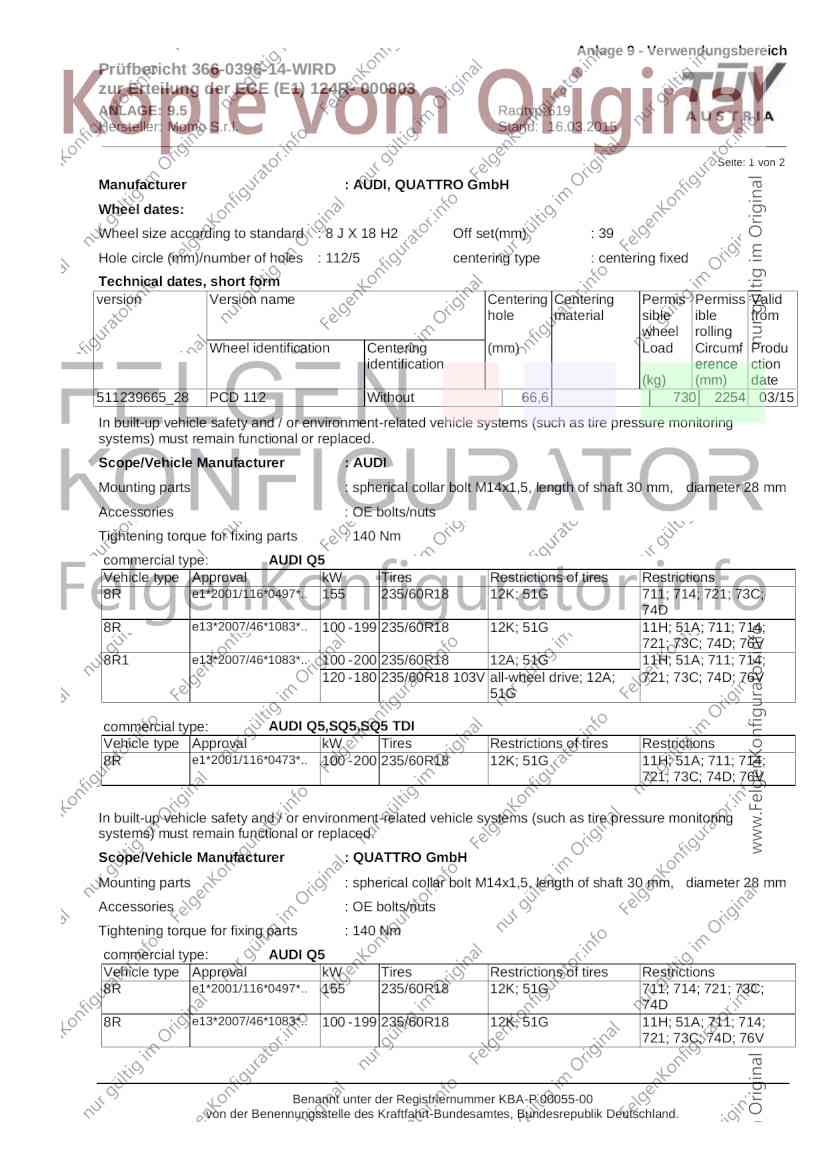

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0396-14-WIRD
zur Erteilung der ECE (E1) 124R- 000803
ANLAGE: 9.5 Radtyp: 619
Hersteller: Momo S.r.l. Stand: 16.03.2015
__________________________________________________________________________________________________________________
Seite: 1 von 2
Manufacturer : AUDI, QUATTRO GmbH
Wheel dates:
Wheel size according to standard : 8 J X 18 H2 Off set(mm) : 39
Hole circle (mm)/number of holes : 112/5 centering type : centering fixed
Technical dates, short form
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(kg) (mm) date
511239665_28 PCD 112 Without 66,6 730 2254 03/15
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : AUDI
Mounting parts : spherical collar bolt M14x1,5, length of shaft 30 mm, diameter 28 mm
Accessories : OE bolts/nuts
Tightening torque for fixing parts : 140 Nm
commercial type: AUDI Q5
Vehicle type Approval kW Tires Restrictions of tires Restrictions
8R e1*2001/116*0497*.. 155 235/60R18 12K; 51G 711; 714; 721; 73C;
74D
8R e13*2007/46*1083*.. 100 - 199 235/60R18 12K; 51G 11H; 51A; 711; 714;
721; 73C; 74D; 76V
8R1 e13*2007/46*1083*.. 100 - 200 235/60R18 12A; 51G 11H; 51A; 711; 714;
120 - 180 235/60R18 103V all-wheel drive; 12A; 721; 73C; 74D; 76V
51G
commercial type: AUDI Q5,SQ5,SQ5 TDI
Vehicle type Approval kW Tires Restrictions of tires Restrictions
8R e1*2001/116*0473*.. 100 - 200 235/60R18 12K; 51G 11H; 51A; 711; 714;
721; 73C; 74D; 76V
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : QUATTRO GmbH
Mounting parts : spherical collar bolt M14x1,5, length of shaft 30 mm, diameter 28 mm
Accessories : OE bolts/nuts
Tightening torque for fixing parts : 140 Nm
commercial type: AUDI Q5
Vehicle type Approval kW Tires Restrictions of tires Restrictions
8R e1*2001/116*0497*.. 155 235/60R18 12K; 51G 711; 714; 721; 73C;
74D
8R e13*2007/46*1083*.. 100 - 199 235/60R18 12K; 51G 11H; 51A; 711; 714;
721; 73C; 74D; 76V
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.

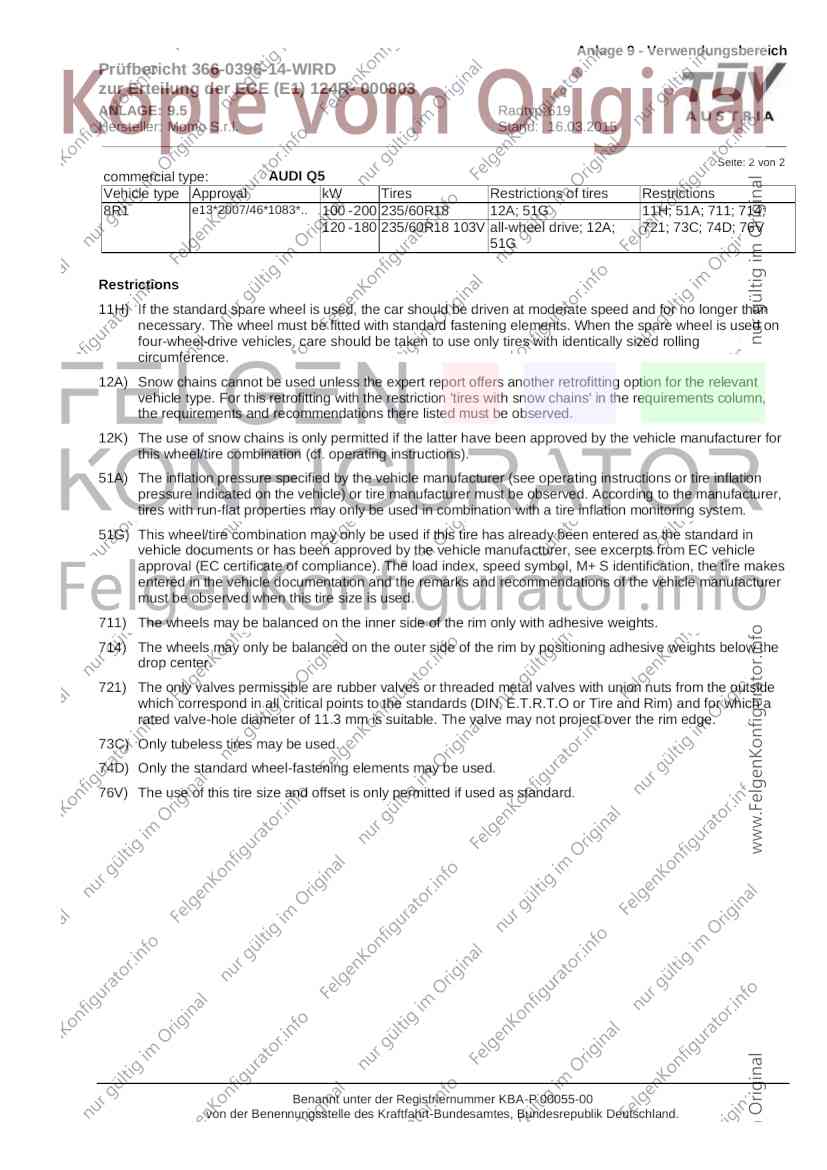

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0396-14-WIRD
zur Erteilung der ECE (E1) 124R- 000803
ANLAGE: 9.5 Radtyp: 619
Hersteller: Momo S.r.l. Stand: 16.03.2015
__________________________________________________________________________________________________________________
Seite: 2 von 2
commercial type: AUDI Q5
Vehicle type Approval kW Tires Restrictions of tires Restrictions
8R1 e13*2007/46*1083*.. 100 - 200 235/60R18 12A; 51G 11H; 51A; 711; 714;
120 - 180 235/60R18 103V all-wheel drive; 12A; 721; 73C; 74D; 76V
51G
Restrictions
11H) If the standard spare wheel is used, the car should be driven at moderate speed and for no longer than
necessary. The wheel must be fitted with standard fastening elements. When the spare wheel is used on
four-wheel-drive vehicles, care should be taken to use only tires with identically sized rolling
circumference.
12A) Snow chains cannot be used unless the expert report offers another retrofitting option for the relevant
vehicle type. For this retrofitting with the restriction 'tires with snow chains' in the requirements column,
the requirements and recommendations there listed must be observed.
12K) The use of snow chains is only permitted if the latter have been approved by the vehicle manufacturer for
this wheel/tire combination (cf. operating instructions).
51A) The inflation pressure specified by the vehicle manufacturer (see operating instructions or tire inflation
pressure indicated on the vehicle) or tire manufacturer must be observed. According to the manufacturer,
tires with run-flat properties may only be used in combination with a tire inflation monitoring system.
51G) This wheel/tire combination may only be used if this tire has already been entered as the standard in
vehicle documents or has been approved by the vehicle manufacturer, see excerpts from EC vehicle
approval (EC certificate of compliance). The load index, speed symbol, M+ S identification, the tire makes
entered in the vehicle documentation and the remarks and recommendations of the vehicle manufacturer
must be observed when this tire size is used.
711) The wheels may be balanced on the inner side of the rim only with adhesive weights.
714) The wheels may only be balanced on the outer side of the rim by positioning adhesive weights below the
drop center.
721) The only valves permissible are rubber valves or threaded metal valves with union nuts from the outside
which correspond in all critical points to the standards (DIN, E.T.R.T.O or Tire and Rim) and for which a
rated valve-hole diameter of 11.3 mm is suitable. The valve may not project over the rim edge.
73C) Only tubeless tires may be used.
74D) Only the standard wheel-fastening elements may be used.
76V) The use of this tire size and offset is only permitted if used as standard.
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
