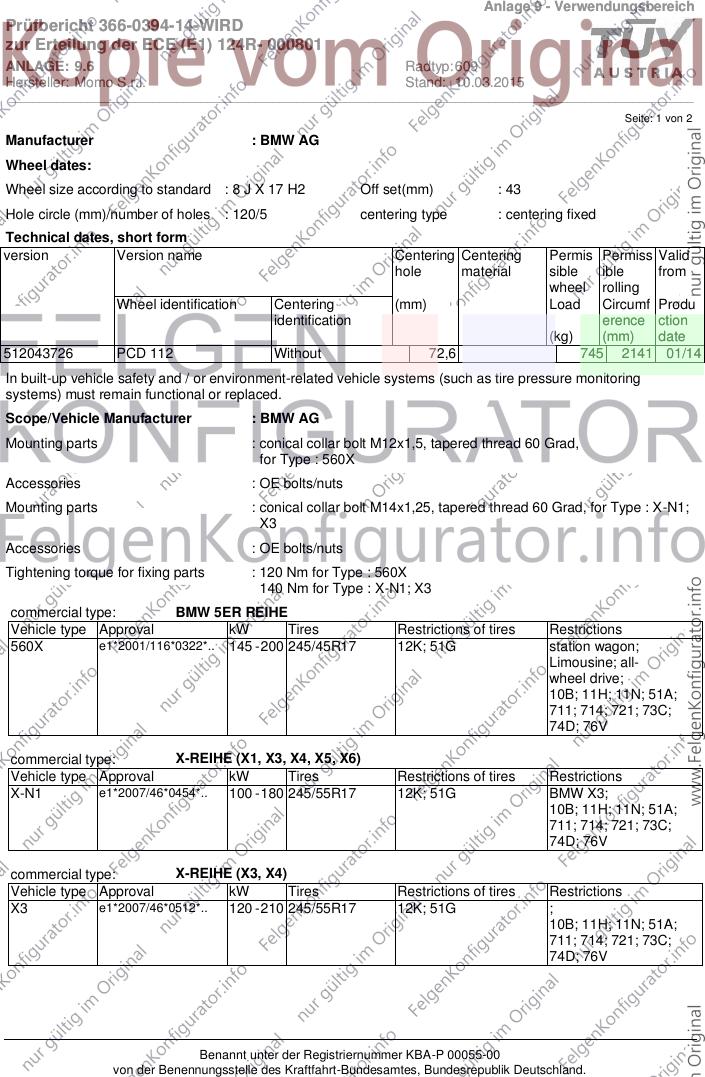

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0394-14-WIRD
zur Erteilung der ECE (E1) 124R- 000801
ANLAGE: 9.6 Radtyp: 609
Hersteller: Momo S.r.l. Stand: 10.03.2015
__________________________________________________________________________________________________________________
Seite: 1 von 2
Manufacturer : BMW AG
Wheel dates:
Wheel size according to standard : 8 J X 17 H2 Off set(mm) : 43
Hole circle (mm)/number of holes : 120/5 centering type : centering fixed
Technical dates, short form
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(kg) (mm) date
512043726 PCD 112 Without 72,6 745 2141 01/14
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : BMW AG
Mounting parts : conical collar bolt M12x1,5, tapered thread 60 Grad,
for Type : 560X
Accessories : OE bolts/nuts
Mounting parts : conical collar bolt M14x1,25, tapered thread 60 Grad, for Type : X-N1;
X3
Accessories : OE bolts/nuts
Tightening torque for fixing parts : 120 Nm for Type : 560X
140 Nm for Type : X-N1; X3
commercial type: BMW 5ER REIHE
Vehicle type Approval kW Tires Restrictions of tires Restrictions
560X e1*2001/116*0322*.. 145 - 200 245/45R17 12K; 51G station wagon;
Limousine; all-
wheel drive;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
commercial type: X-REIHE (X1, X3, X4, X5, X6)
Vehicle type Approval kW Tires Restrictions of tires Restrictions
X-N1 e1*2007/46*0454*.. 100 - 180 245/55R17 12K; 51G BMW X3;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
commercial type: X-REIHE (X3, X4)
Vehicle type Approval kW Tires Restrictions of tires Restrictions
X3 e1*2007/46*0512*.. 120 - 210 245/55R17 12K; 51G ;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.

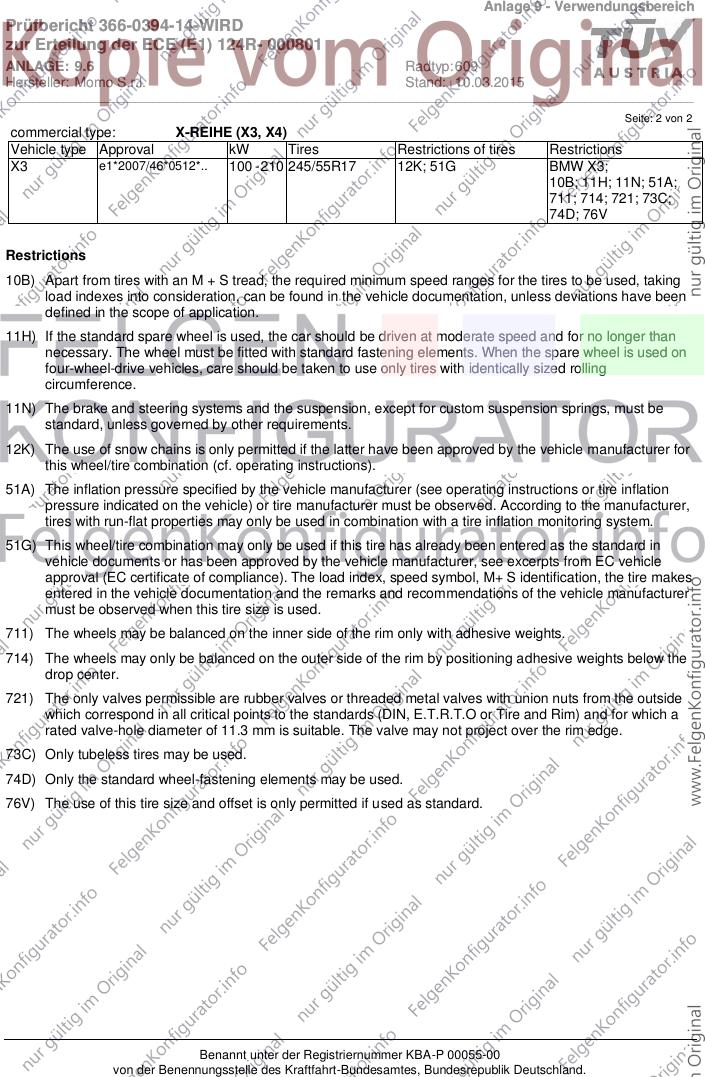

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0394-14-WIRD
zur Erteilung der ECE (E1) 124R- 000801
ANLAGE: 9.6 Radtyp: 609
Hersteller: Momo S.r.l. Stand: 10.03.2015
__________________________________________________________________________________________________________________
Seite: 2 von 2
commercial type: X-REIHE (X3, X4)
Vehicle type Approval kW Tires Restrictions of tires Restrictions
X3 e1*2007/46*0512*.. 100 - 210 245/55R17 12K; 51G BMW X3;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Restrictions
10B) Apart from tires with an M + S tread, the required minimum speed ranges for the tires to be used, taking
load indexes into consideration, can be found in the vehicle documentation, unless deviations have been
defined in the scope of application.
11H) If the standard spare wheel is used, the car should be driven at moderate speed and for no longer than
necessary. The wheel must be fitted with standard fastening elements. When the spare wheel is used on
four-wheel-drive vehicles, care should be taken to use only tires with identically sized rolling
circumference.
11N) The brake and steering systems and the suspension, except for custom suspension springs, must be
standard, unless governed by other requirements.
12K) The use of snow chains is only permitted if the latter have been approved by the vehicle manufacturer for
this wheel/tire combination (cf. operating instructions).
51A) The inflation pressure specified by the vehicle manufacturer (see operating instructions or tire inflation
pressure indicated on the vehicle) or tire manufacturer must be observed. According to the manufacturer,
tires with run-flat properties may only be used in combination with a tire inflation monitoring system.
51G) This wheel/tire combination may only be used if this tire has already been entered as the standard in
vehicle documents or has been approved by the vehicle manufacturer, see excerpts from EC vehicle
approval (EC certificate of compliance). The load index, speed symbol, M+ S identification, the tire makes
entered in the vehicle documentation and the remarks and recommendations of the vehicle manufacturer
must be observed when this tire size is used.
711) The wheels may be balanced on the inner side of the rim only with adhesive weights.
714) The wheels may only be balanced on the outer side of the rim by positioning adhesive weights below the
drop center.
721) The only valves permissible are rubber valves or threaded metal valves with union nuts from the outside
which correspond in all critical points to the standards (DIN, E.T.R.T.O or Tire and Rim) and for which a
rated valve-hole diameter of 11.3 mm is suitable. The valve may not project over the rim edge.
73C) Only tubeless tires may be used.
74D) Only the standard wheel-fastening elements may be used.
76V) The use of this tire size and offset is only permitted if used as standard.
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
