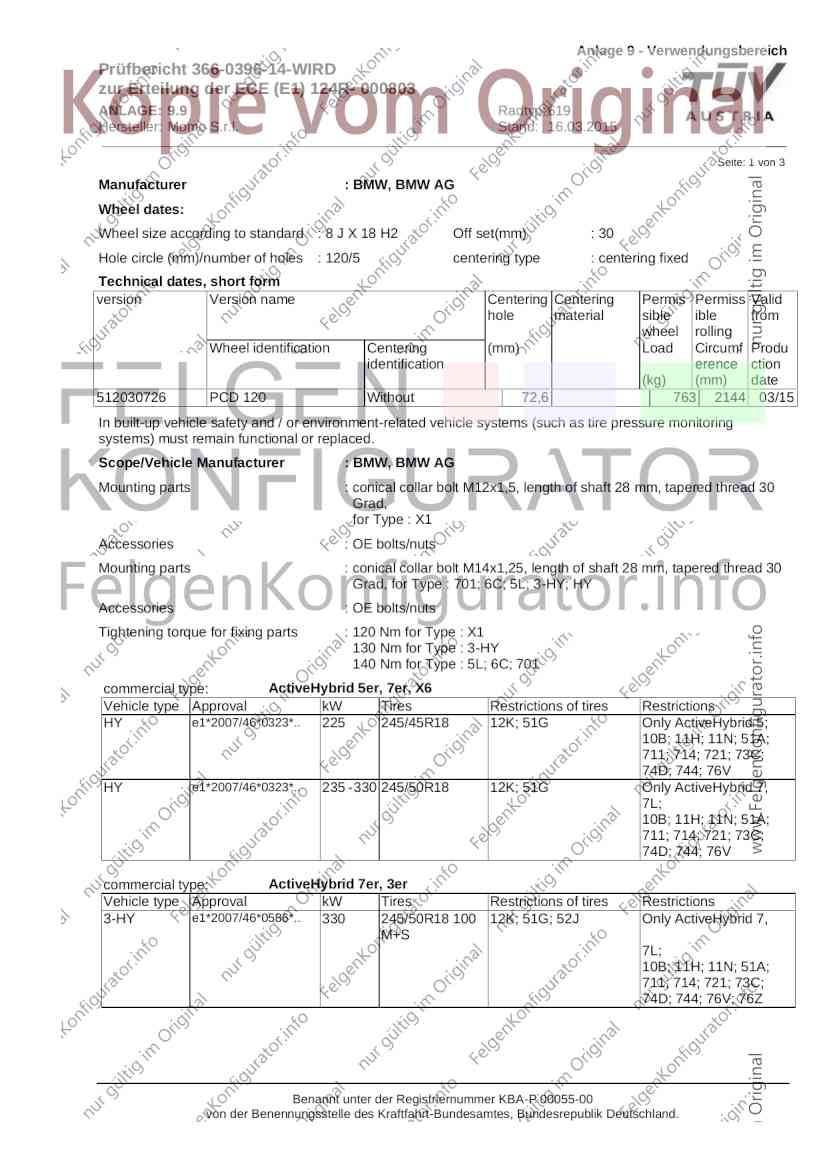

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0396-14-WIRD
zur Erteilung der ECE (E1) 124R- 000803
ANLAGE: 9.9 Radtyp: 619
Hersteller: Momo S.r.l. Stand: 16.03.2015
__________________________________________________________________________________________________________________
Seite: 1 von 3
Manufacturer : BMW, BMW AG
Wheel dates:
Wheel size according to standard : 8 J X 18 H2 Off set(mm) : 30
Hole circle (mm)/number of holes : 120/5 centering type : centering fixed
Technical dates, short form
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(kg) (mm) date
512030726 PCD 120 Without 72,6 763 2144 03/15
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : BMW, BMW AG
Mounting parts : conical collar bolt M12x1,5, length of shaft 28 mm, tapered thread 30
Grad,
for Type : X1
Accessories : OE bolts/nuts
Mounting parts : conical collar bolt M14x1,25, length of shaft 28 mm, tapered thread 30
Grad, for Type : 701; 6C; 5L; 3-HY; HY
Accessories : OE bolts/nuts
Tightening torque for fixing parts : 120 Nm for Type : X1
130 Nm for Type : 3-HY
140 Nm for Type : 5L; 6C; 701
commercial type: ActiveHybrid 5er, 7er, X6
Vehicle type Approval kW Tires Restrictions of tires Restrictions
HY e1*2007/46*0323*.. 225 245/45R18 12K; 51G Only ActiveHybrid 5;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 744; 76V
HY e1*2007/46*0323*.. 235 - 330 245/50R18 12K; 51G Only ActiveHybrid 7,
7L;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 744; 76V
commercial type: ActiveHybrid 7er, 3er
Vehicle type Approval kW Tires Restrictions of tires Restrictions
3-HY e1*2007/46*0586*.. 330 245/50R18 100 12K; 51G; 52J Only ActiveHybrid 7,
M+S
7L;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 744; 76V; 76Z
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.

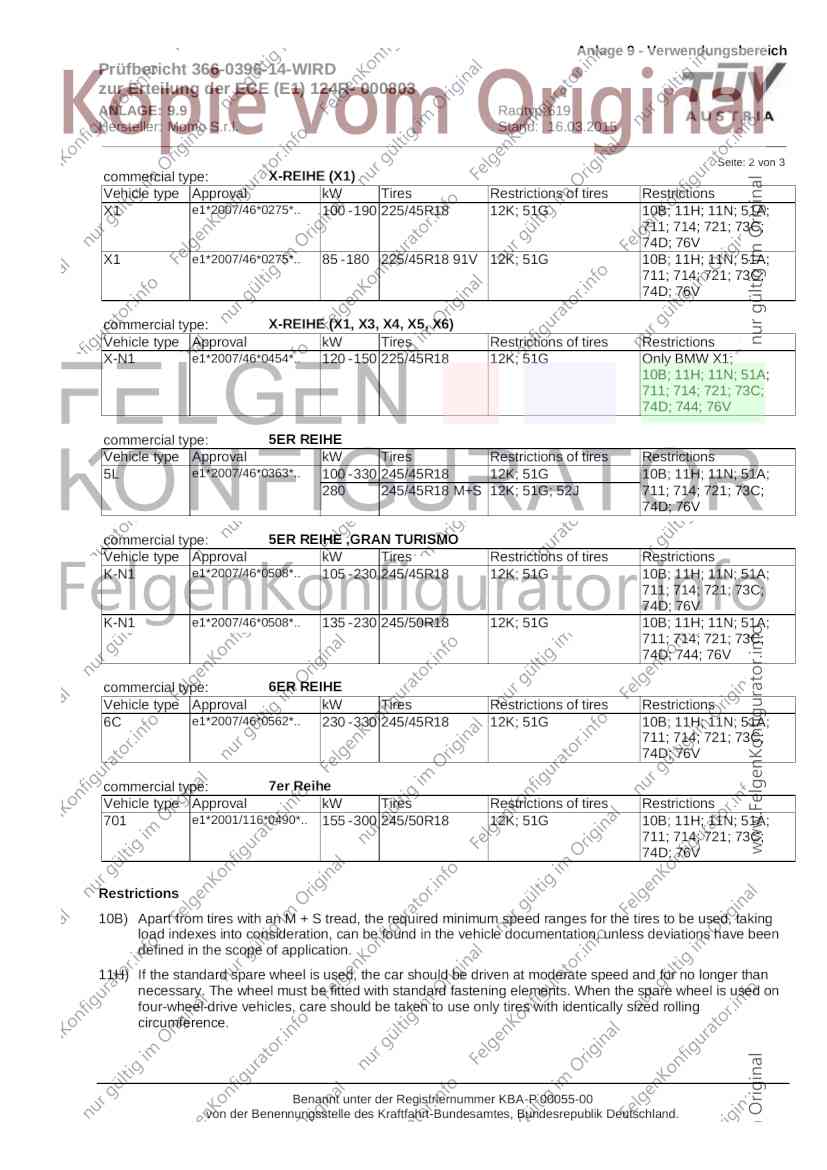

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0396-14-WIRD
zur Erteilung der ECE (E1) 124R- 000803
ANLAGE: 9.9 Radtyp: 619
Hersteller: Momo S.r.l. Stand: 16.03.2015
__________________________________________________________________________________________________________________
Seite: 2 von 3
commercial type: X-REIHE (X1)
Vehicle type Approval kW Tires Restrictions of tires Restrictions
X1 e1*2007/46*0275*.. 100 - 190 225/45R18 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
X1 e1*2007/46*0275*.. 85 - 180 225/45R18 91V 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
commercial type: X-REIHE (X1, X3, X4, X5, X6)
Vehicle type Approval kW Tires Restrictions of tires Restrictions
X-N1 e1*2007/46*0454*.. 120 - 150 225/45R18 12K; 51G Only BMW X1;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 744; 76V
commercial type: 5ER REIHE
Vehicle type Approval kW Tires Restrictions of tires Restrictions
5L e1*2007/46*0363*.. 100 - 330 245/45R18 12K; 51G 10B; 11H; 11N; 51A;
280 245/45R18 M+S 12K; 51G; 52J 711; 714; 721; 73C;
74D; 76V
commercial type: 5ER REIHE ,GRAN TURISMO
Vehicle type Approval kW Tires Restrictions of tires Restrictions
K-N1 e1*2007/46*0508*.. 105 - 230 245/45R18 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
K-N1 e1*2007/46*0508*.. 135 - 230 245/50R18 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 744; 76V
commercial type: 6ER REIHE
Vehicle type Approval kW Tires Restrictions of tires Restrictions
6C e1*2007/46*0562*.. 230 - 330 245/45R18 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
commercial type: 7er Reihe
Vehicle type Approval kW Tires Restrictions of tires Restrictions
701 e1*2001/116*0490*.. 155 - 300 245/50R18 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Restrictions
10B) Apart from tires with an M + S tread, the required minimum speed ranges for the tires to be used, taking
load indexes into consideration, can be found in the vehicle documentation, unless deviations have been
defined in the scope of application.
11H) If the standard spare wheel is used, the car should be driven at moderate speed and for no longer than
necessary. The wheel must be fitted with standard fastening elements. When the spare wheel is used on
four-wheel-drive vehicles, care should be taken to use only tires with identically sized rolling
circumference.
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.

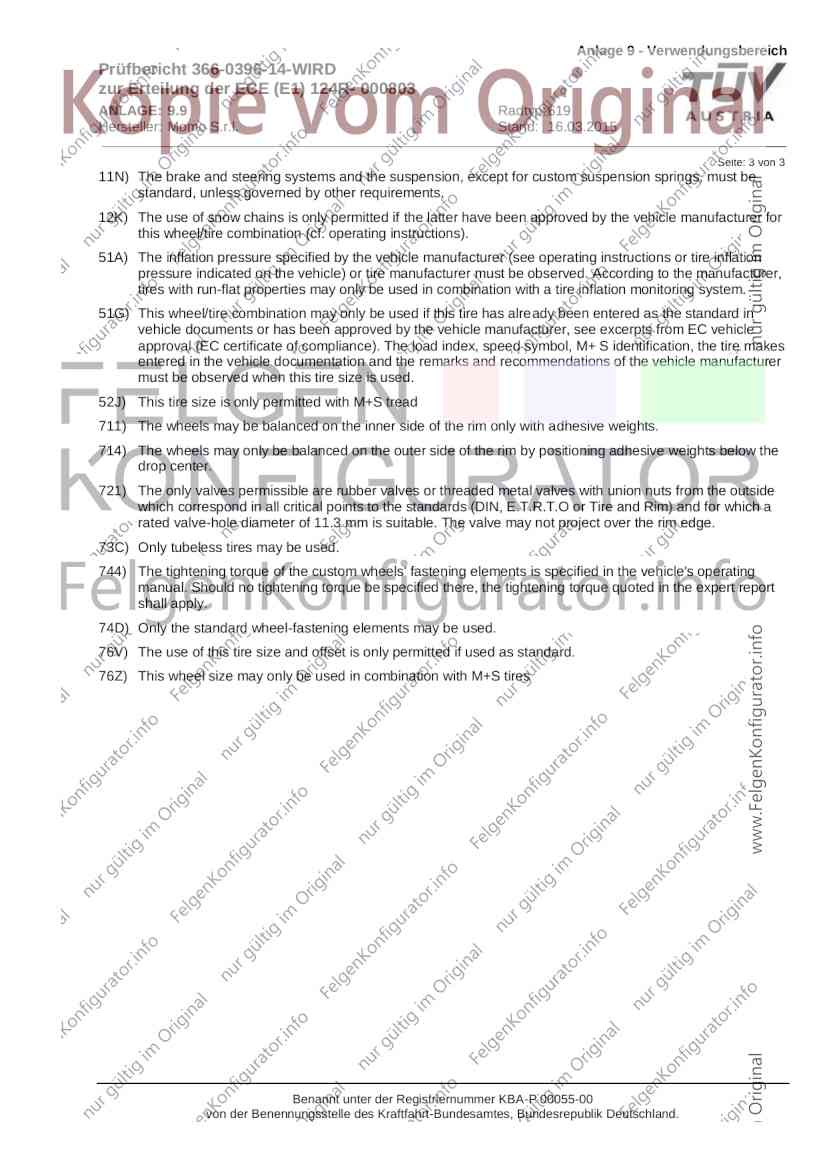

Anlage 9 - Verwendungsbereich
Prüfbericht 366-0396-14-WIRD
zur Erteilung der ECE (E1) 124R- 000803
ANLAGE: 9.9 Radtyp: 619
Hersteller: Momo S.r.l. Stand: 16.03.2015
__________________________________________________________________________________________________________________
Seite: 3 von 3
11N) The brake and steering systems and the suspension, except for custom suspension springs, must be
standard, unless governed by other requirements.
12K) The use of snow chains is only permitted if the latter have been approved by the vehicle manufacturer for
this wheel/tire combination (cf. operating instructions).
51A) The inflation pressure specified by the vehicle manufacturer (see operating instructions or tire inflation
pressure indicated on the vehicle) or tire manufacturer must be observed. According to the manufacturer,
tires with run-flat properties may only be used in combination with a tire inflation monitoring system.
51G) This wheel/tire combination may only be used if this tire has already been entered as the standard in
vehicle documents or has been approved by the vehicle manufacturer, see excerpts from EC vehicle
approval (EC certificate of compliance). The load index, speed symbol, M+ S identification, the tire makes
entered in the vehicle documentation and the remarks and recommendations of the vehicle manufacturer
must be observed when this tire size is used.
52J) This tire size is only permitted with M+S tread
711) The wheels may be balanced on the inner side of the rim only with adhesive weights.
714) The wheels may only be balanced on the outer side of the rim by positioning adhesive weights below the
drop center.
721) The only valves permissible are rubber valves or threaded metal valves with union nuts from the outside
which correspond in all critical points to the standards (DIN, E.T.R.T.O or Tire and Rim) and for which a
rated valve-hole diameter of 11.3 mm is suitable. The valve may not project over the rim edge.
73C) Only tubeless tires may be used.
744) The tightening torque of the custom wheels' fastening elements is specified in the vehicle's operating
manual. Should no tightening torque be specified there, the tightening torque quoted in the expert report
shall apply.
74D) Only the standard wheel-fastening elements may be used.
76V) The use of this tire size and offset is only permitted if used as standard.
76Z) This wheel size may only be used in combination with M+S tires
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
