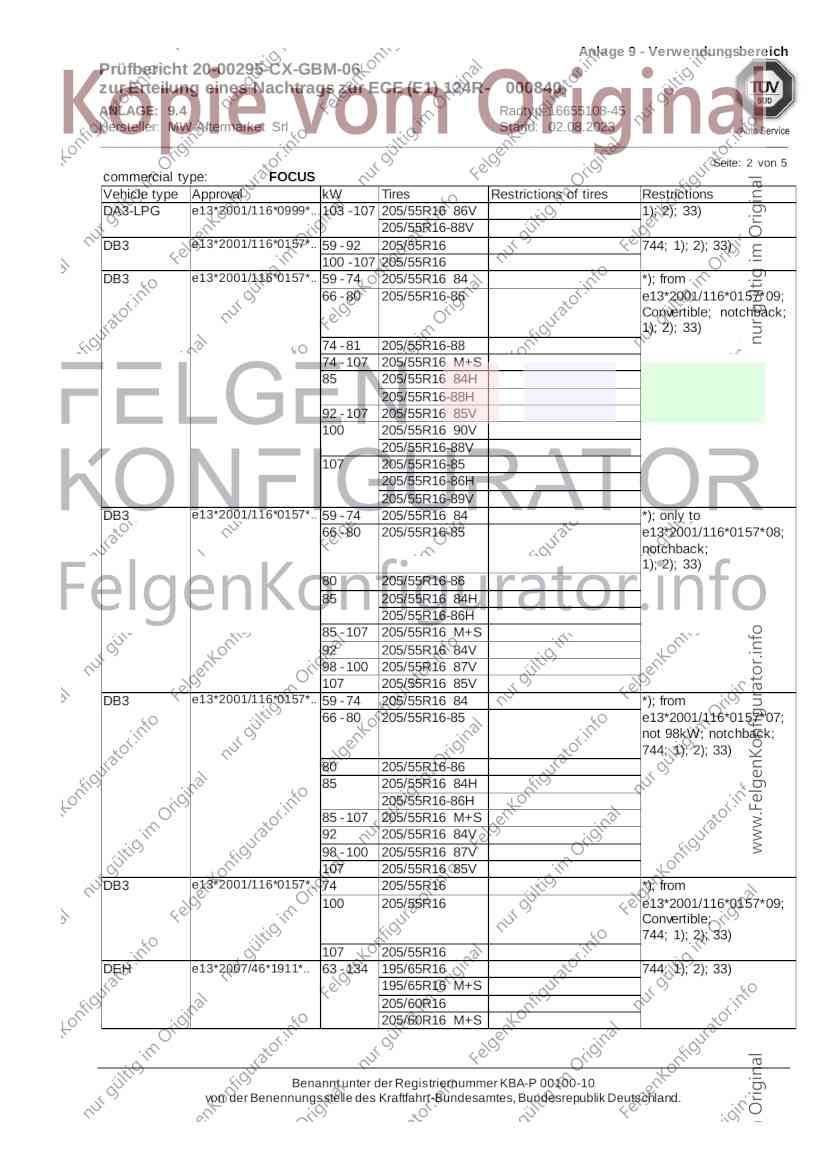

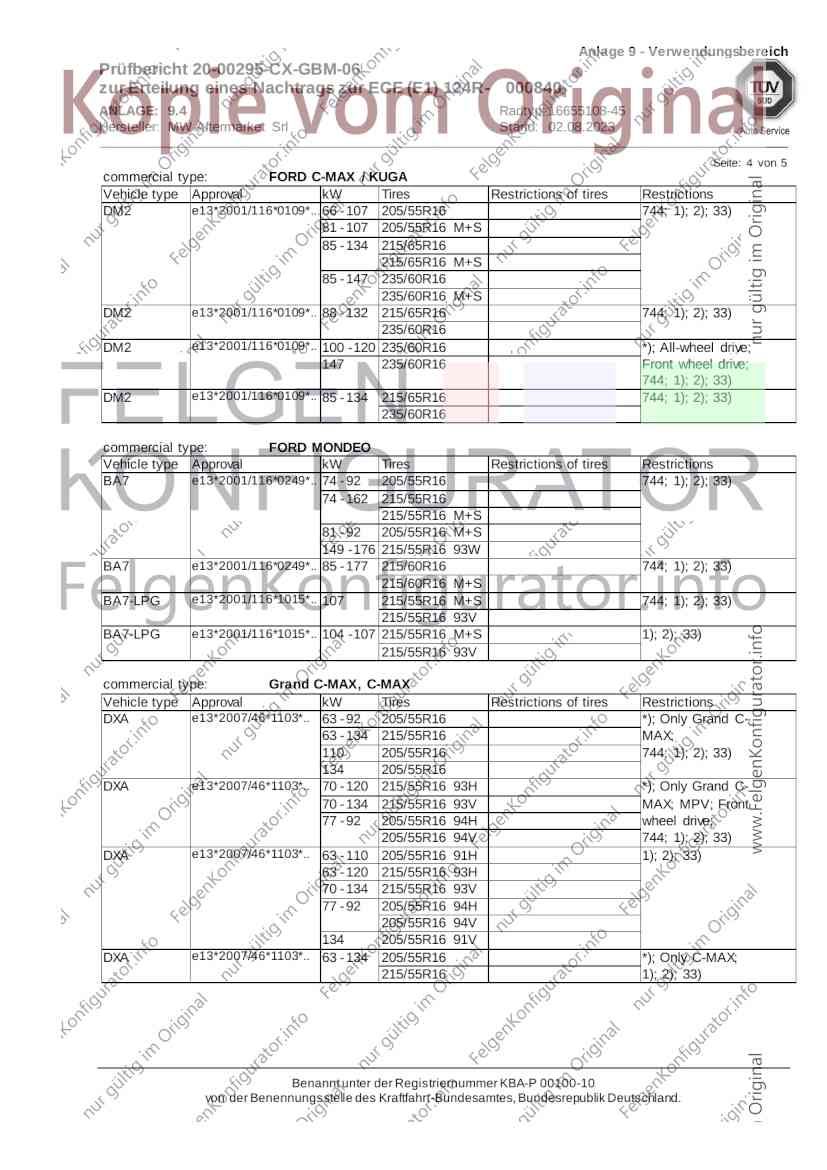

Anlage 9 - Verwendungsbereich
Prüfbericht 20-00295-CX-GBM-06
zur Erteilung eines Nachtrags zur ECE (E1) 124R- 000840
ANLAGE: 9.4 Radtyp: 16655108-45
Hersteller: MW Aftermarket Srl Stand: 02.08.2023
______________________________________________________________________________________________________________
Seite: 1 von 5
Manufacturer : FORD
Wheel dates:
Wheel size according to standard : 6 1/2 J X 16 H2 Off set(mm) : 50
Hole circle (mm)/number of holes : 108/5 centering type : centering fixed
Technical dates, short form
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(kg) (mm) date
R1-1707 R1-1707 Without 63,35 663 1958 47/14
Prescribed systems in the vehicle must be functioning with the use of the described rim combination.
Scope/Vehicle Manufacturer : FORD
Mounting parts : conical collar nut M12x1,5, tapered thread 60 Grad,
for Type : DA3-CNG; DM2-CNG; BA7-LPG; DXA; DM2; DA3;
DM2-LPG; DA3-LPG; DB3
Accessories : Serie
Mounting parts : conical collar nut M12x1,5, tapered thread 60 Grad, for Type :
DA3-CNG; DXA-LPG; DA3-LPG; DB3; DYB; DEH; DM2-LPG; DA3;
DYB-LPG; BA7; BA7-LPG; DM2-CNG; DM2; DXA-PHEV; DXA;
DYB-BEV
Tightening torque for fixing parts : 120 Nm for Type : DA3; DB3
120 Nm ( Nur C-MAX ) for Type : DM2; DM2-CNG; DM2-LPG
130 Nm for Type : DA3-CNG; DA3-LPG; DM2; DXA; DXA-LPG; DYB
140 Nm for Type : BA7-LPG
commercial type: C-MAX ENERGI
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DXA-PHEV e13*KS07/46*1465*.. 101 215/60R16 744; 1); 2); 33)
215/60R16 M+S
commercial type: FOCUS
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DA3 e13*2001/116*0144*.. 59 - 107 205/55R16 744; 1); 2); 33)
DA3 e13*2001/116*0144*.. 59 - 107 205/55R16 *); from
81 - 166 205/55R16 91 e13*2001/116*0144*12;
M+S 1); 2); 33)
92 - 107 205/55R16 91H
100 - 107 205/55R16 91V
DA3-CNG e13*2001/116*1017*.. 91 - 107 205/55R16 M+S 1); 2); 33)
205/55R16 86V
DA3-CNG e13*2001/116*1017*.. 107 205/55R16 M+S 744; 1); 2); 33)
205/55R16 86V
DA3-LPG e13*2001/116*0999*.. 85 205/55R16 744; 1); 2); 33)
107 205/55R16
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 20-00295-CX-GBM-06
zur Erteilung eines Nachtrags zur ECE (E1) 124R- 000840
ANLAGE: 9.4 Radtyp: 16655108-45
Hersteller: MW Aftermarket Srl Stand: 02.08.2023
______________________________________________________________________________________________________________
Seite: 2 von 5
commercial type: FOCUS
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DA3-LPG e13*2001/116*0999*.. 103 - 107 205/55R16 86V 1); 2); 33)
205/55R16-88V
DB3 e13*2001/116*0157*.. 59 - 92 205/55R16 744; 1); 2); 33)
100 - 107 205/55R16
DB3 e13*2001/116*0157*.. 59 - 74 205/55R16 84 *); from
66 - 80 205/55R16-86 e13*2001/116*0157*09;
Convertible; notchback;
1); 2); 33)
74 - 81 205/55R16-88
74 - 107 205/55R16 M+S
85 205/55R16 84H
205/55R16-88H
92 - 107 205/55R16 85V
100 205/55R16 90V
205/55R16-88V
107 205/55R16-85
205/55R16-86H
205/55R16-89V
DB3 e13*2001/116*0157*.. 59 - 74 205/55R16 84 *); only to
66 - 80 205/55R16-85 e13*2001/116*0157*08;
notchback;
1); 2); 33)
80 205/55R16-86
85 205/55R16 84H
205/55R16-86H
85 - 107 205/55R16 M+S
92 205/55R16 84V
98 - 100 205/55R16 87V
107 205/55R16 85V
DB3 e13*2001/116*0157*.. 59 - 74 205/55R16 84 *); from
66 - 80 205/55R16-85 e13*2001/116*0157*07;
not 98kW; notchback;
744; 1); 2); 33)
80 205/55R16-86
85 205/55R16 84H
205/55R16-86H
85 - 107 205/55R16 M+S
92 205/55R16 84V
98 - 100 205/55R16 87V
107 205/55R16 85V
DB3 e13*2001/116*0157*.. 74 205/55R16 *); from
100 205/55R16 e13*2001/116*0157*09;
Convertible;
744; 1); 2); 33)
107 205/55R16
DEH e13*2007/46*1911*.. 63 - 134 195/65R16 744; 1); 2); 33)
195/65R16 M+S
205/60R16
205/60R16 M+S
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 20-00295-CX-GBM-06
zur Erteilung eines Nachtrags zur ECE (E1) 124R- 000840
ANLAGE: 9.4 Radtyp: 16655108-45
Hersteller: MW Aftermarket Srl Stand: 02.08.2023
______________________________________________________________________________________________________________
Seite: 3 von 5
commercial type: FOCUS
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DEH e13*2007/46*1911*.. 63 - 92 195/65R16 744; 1); 2); 33)
195/65R16 M+S
DEH e13*2007/46*1911*.. 63 - 92 195/65R16 744; 1); 2); 33)
195/65R16 M+S
DYB e13*2007/46*1138*.. 63 - 125 205/55R16 91H 1); 2); 33)
215/55R16 93H
110 - 134 205/55R16 91V
215/55R16 93V
commercial type: Focus Electric
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DYB-BEV e13*2007/46*1390*.. 45 215/60R16 744; 1); 2); 33)
commercial type: FOCUS STH, FOCUS TURNIER
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DYB-LPG e13*2007/46*1289*.. 88 205/55R16 91H *); Front wheel
215/55R16 93H drive;
744; 1); 2); 33)
commercial type: FORD C-MAX
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DM2-CNG e13*2001/116*1018*.. 91 - 107 205/55R16 87 1); 2); 33)
M+S
205/55R16 87V
DM2-CNG e13*2001/116*1018*.. 107 205/55R16 87 744; 1); 2); 33)
M+S
205/55R16 87V
DM2-LPG e13*2001/116*1000*.. 107 205/55R16 87V 744; 1); 2); 33)
DM2-LPG e13*2001/116*1000*.. 103 - 107 205/55R16 87V 1); 2); 33)
commercial type: FORD C-MAX / KUGA
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DM2 e13*2001/116*0109*.. 100 - 120 235/60R16 100 *); Only Kuga to
147 235/60R16 91V Modeljahr 2012; All-
wheel drive; Front
wheel drive;
1); 2); 33)
DM2 e13*2001/116*0109*.. 100 - 120 235/60R16 100 *); All-wheel drive;
147 235/60R16 91V Front wheel drive;
744; 1); 2); 33)
DM2 e13*2001/116*0109*.. 66 - 107 205/55R16 91 *); C-MAX only;
81 - 107 205/55R16 M+S 744; 1); 2); 33)
DM2 e13*2001/116*0109*.. 66 - 107 205/55R16 91 *); C-MAX only;
81 - 107 205/55R16 M+S 1); 2); 33)
DM2 e13*2001/116*0109*.. 85 - 134 215/65R16 98V 744; 1); 2); 33)
235/60R16-100V
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 20-00295-CX-GBM-06
zur Erteilung eines Nachtrags zur ECE (E1) 124R- 000840
ANLAGE: 9.4 Radtyp: 16655108-45
Hersteller: MW Aftermarket Srl Stand: 02.08.2023
______________________________________________________________________________________________________________
Seite: 4 von 5
commercial type: FORD C-MAX / KUGA
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DM2 e13*2001/116*0109*.. 66 - 107 205/55R16 744; 1); 2); 33)
81 - 107 205/55R16 M+S
85 - 134 215/65R16
215/65R16 M+S
85 - 147 235/60R16
235/60R16 M+S
DM2 e13*2001/116*0109*.. 88 - 132 215/65R16 744; 1); 2); 33)
235/60R16
DM2 e13*2001/116*0109*.. 100 - 120 235/60R16 *); All-wheel drive;
147 235/60R16 Front wheel drive;
744; 1); 2); 33)
DM2 e13*2001/116*0109*.. 85 - 134 215/65R16 744; 1); 2); 33)
235/60R16
commercial type: FORD MONDEO
Vehicle type Approval kW Tires Restrictions of tires Restrictions
BA7 e13*2001/116*0249*.. 74 - 92 205/55R16 744; 1); 2); 33)
74 - 162 215/55R16
215/55R16 M+S
81 - 92 205/55R16 M+S
149 - 176 215/55R16 93W
BA7 e13*2001/116*0249*.. 85 - 177 215/60R16 744; 1); 2); 33)
215/60R16 M+S
BA7-LPG e13*2001/116*1015*.. 107 215/55R16 M+S 744; 1); 2); 33)
215/55R16 93V
BA7-LPG e13*2001/116*1015*.. 104 - 107 215/55R16 M+S 1); 2); 33)
215/55R16 93V
commercial type: Grand C-MAX, C-MAX
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DXA e13*2007/46*1103*.. 63 - 92 205/55R16 *); Only Grand C-
63 - 134 215/55R16 MAX;
110 205/55R16 744; 1); 2); 33)
134 205/55R16
DXA e13*2007/46*1103*.. 70 - 120 215/55R16 93H *); Only Grand C-
70 - 134 215/55R16 93V MAX; MPV; Front
77 - 92 205/55R16 94H wheel drive;
205/55R16 94V 744; 1); 2); 33)
DXA e13*2007/46*1103*.. 63 - 110 205/55R16 91H 1); 2); 33)
63 - 120 215/55R16 93H
70 - 134 215/55R16 93V
77 - 92 205/55R16 94H
205/55R16 94V
134 205/55R16 91V
DXA e13*2007/46*1103*.. 63 - 134 205/55R16 *); Only C-MAX;
215/55R16 1); 2); 33)
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 20-00295-CX-GBM-06
zur Erteilung eines Nachtrags zur ECE (E1) 124R- 000840
ANLAGE: 9.4 Radtyp: 16655108-45
Hersteller: MW Aftermarket Srl Stand: 02.08.2023
______________________________________________________________________________________________________________
Seite: 5 von 5
commercial type: Grand C-MAX, C-MAX
Vehicle type Approval kW Tires Restrictions of tires Restrictions
DXA e13*2007/46*1103*.. 70 - 110 205/55R16 91H *); Only C-MAX; MPV;
70 - 120 215/55R16 93H Front wheel drive;
70 - 134 205/55R16 744; 1); 2); 33)
85 - 120 215/55R16
120 - 134 215/55R16 93V
134 205/55R16 91V
DXA e13*2007/46*1103*.. 70 - 110 205/55R16 91H *); Only C-MAX; MPV;
70 - 120 215/55R16 93H Front wheel drive;
120 - 134 215/55R16 93V 744; 1); 2); 33)
134 205/55R16 91V
DXA-LPG e13*2007/46*1288*.. 88 205/55R16 91H 1); 2); 33)
215/55R16 93H
commercial type: MONDEO HYBRID
Vehicle type Approval kW Tires Restrictions of tires Restrictions
BA7H e13*2007/46*1485*.. 103 215/60R16 744; 1); 2); 33)
215/60R16 M+S
BA7-HEV e13*2007/46*1485*.. 103 215/60R16 744; 1); 2); 33)
215/60R16 M+S
*) The remarks under the listed restrictions/conditions are to be kept. If additional trademarks or sale- names are
listed, so there are only this vehicles permissible. All other vehicles to this one application are not concerned.
Restrictions
744) The tightening torque of the custom wheels' fastening elements is specified in the vehicle's operating
manual. Should no tightening torque be specified there, the tightening torque quoted in the expert report
shall apply.
1) To be kept:
- the standard wheel size and offset.
- tyre size with service description (load and speed index) and tyre brand commitments
- as well as limitations to snow tyres (M+S) from the car documents.
- requirements and limitations of snow chains from the operating licence and the operation manual.
2) Only permissible at vehicle models, which are allowed to use steel wheels as standard.
33) The standard fixing parts and accessories of the vehicle manufacturer for the corresponding series -wheel
must be used.
