Anlage 9 - Verwendungsbereich
Prüfbericht 21-00320-CX-GBM-01
zur Erteilung der ECE (E1) 124R- 001035
ANLAGE: 9.2 Radtyp: 16656130-79
Hersteller: MW Aftermarket Srl Stand: 24.09.2021
______________________________________________________________________________________________________________

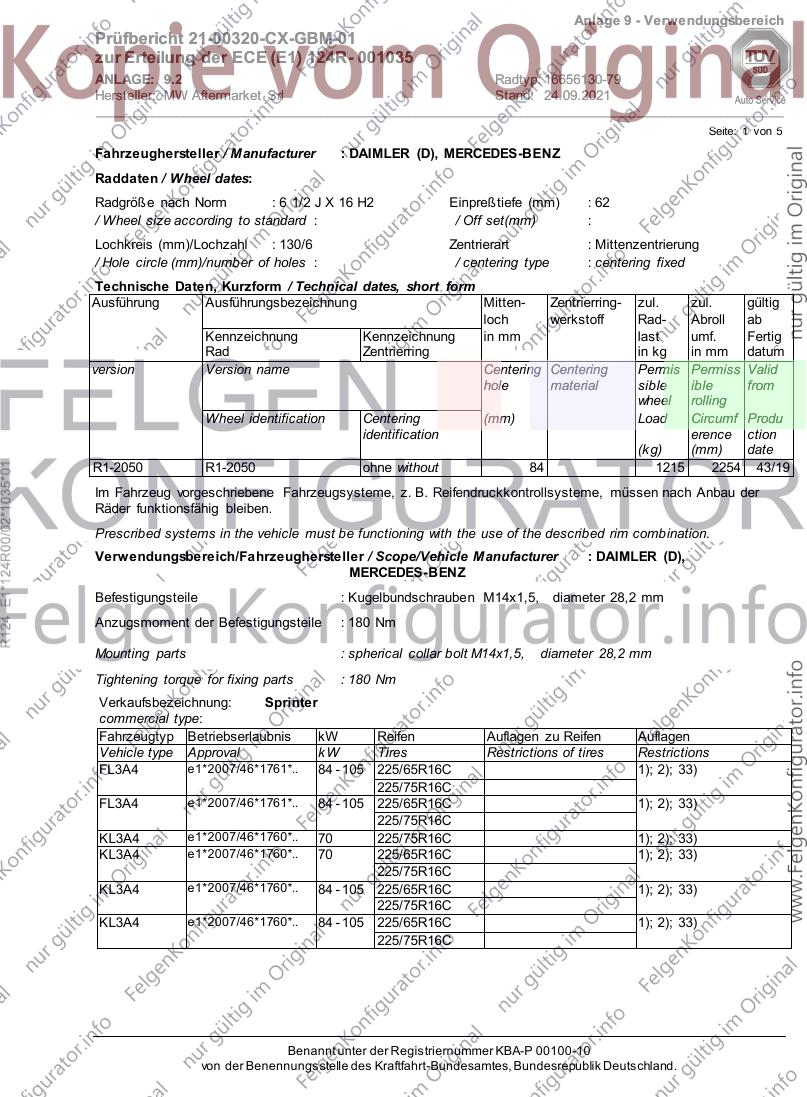

Seite: 1 von 5
Fahrzeughersteller / Manufacturer : DAIMLER (D), MERCEDES-BENZ
Raddaten / Wheel dates:
Radgröße nach Norm : 6 1/2 J X 16 H2 Einpreßtiefe (mm) : 62
/ Wheel size according to standard : / Off set(mm) :
Lochkreis (mm)/Lochzahl : 130/6 Zentrierart : Mittenzentrierung
/ Hole circle (mm)/number of holes : / centering type : centering fixed
Technische Daten, Kurzform / Technical dates, short form
Ausführung Ausführungsbezeichnung Mitten- Zentrierring- zul. zul. gültig
loch werkstoff Rad- Abroll ab
Kennzeichnung Kennzeichnung in mm last umf. Fertig
Rad Zentrierring in kg in mm datum
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(k g) (mm) date
R124 E1*124R00/02*1035*01
R1-2050 R1-2050 ohne without 84 1215 2254 43/19
Im Fahrzeug vorgeschriebene Fahrzeugsysteme, z. B. Reifendruckkontrollsysteme, müssen nach Anbau der
Räder funktionsfähig bleiben.
Prescribed systems in the vehicle must be functioning with the use of the described rim combination.
Verwendungsbereich/Fahrzeughersteller / Scope/Vehicle Manufacturer : DAIMLER (D),
MERCEDES-BENZ
Befestigungsteile : Kugelbundschrauben M14x1,5, diameter 28,2 mm
Anzugsmoment der Befestigungsteile : 180 Nm
Mounting parts : spherical collar bolt M14x1,5, diameter 28,2 mm
Tightening torque for fixing parts : 180 Nm
Verkaufsbezeichnung: Sprinter
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
FL3A4 e1*2007/46*1761*.. 84 - 105 225/65R16C 1); 2); 33)
225/75R16C
FL3A4 e1*2007/46*1761*.. 84 - 105 225/65R16C 1); 2); 33)
225/75R16C
KL3A4 e1*2007/46*1760*.. 70 225/75R16C 1); 2); 33)
KL3A4 e1*2007/46*1760*.. 70 225/65R16C 1); 2); 33)
225/75R16C
KL3A4 e1*2007/46*1760*.. 84 - 105 225/65R16C 1); 2); 33)
225/75R16C
KL3A4 e1*2007/46*1760*.. 84 - 105 225/65R16C 1); 2); 33)
225/75R16C
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 21-00320-CX-GBM-01
zur Erteilung der ECE (E1) 124R- 001035
ANLAGE: 9.2 Radtyp: 16656130-79
Hersteller: MW Aftermarket Srl Stand: 24.09.2021
______________________________________________________________________________________________________________

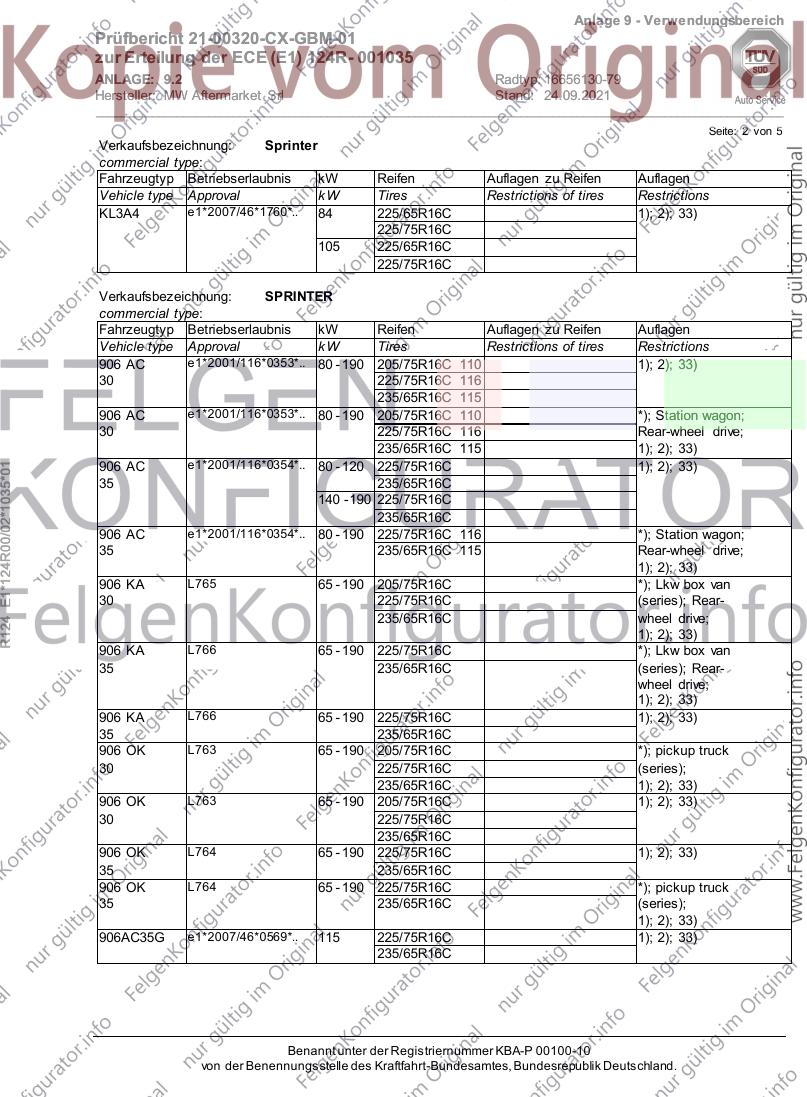

Seite: 2 von 5
Verkaufsbezeichnung: Sprinter
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
KL3A4 e1*2007/46*1760*.. 84 225/65R16C 1); 2); 33)
225/75R16C
105 225/65R16C
225/75R16C
Verkaufsbezeichnung: SPRINTER
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
906 AC e1*2001/116*0353*.. 80 - 190 205/75R16C 110 1); 2); 33)
30 225/75R16C 116
235/65R16C 115
906 AC e1*2001/116*0353*.. 80 - 190 205/75R16C 110 *); Station wagon;
30 225/75R16C 116 Rear-wheel drive;
235/65R16C 115 1); 2); 33)
e1*2001/116*0354*.. 80 - 120
R124 E1*124R00/02*1035*01
906 AC 225/75R16C 1); 2); 33)
35 235/65R16C
140 - 190 225/75R16C
235/65R16C
906 AC e1*2001/116*0354*.. 80 - 190 225/75R16C 116 *); Station wagon;
35 235/65R16C 115 Rear-wheel drive;
1); 2); 33)
906 KA L765 65 - 190 205/75R16C *); Lkw box van
30 225/75R16C (series); Rear-
235/65R16C wheel drive;
1); 2); 33)
906 KA L766 65 - 190 225/75R16C *); Lkw box van
35 235/65R16C (series); Rear-
wheel drive;
1); 2); 33)
906 KA L766 65 - 190 225/75R16C 1); 2); 33)
35 235/65R16C
906 OK L763 65 - 190 205/75R16C *); pickup truck
30 225/75R16C (series);
235/65R16C 1); 2); 33)
906 OK L763 65 - 190 205/75R16C 1); 2); 33)
30 225/75R16C
235/65R16C
906 OK L764 65 - 190 225/75R16C 1); 2); 33)
35 235/65R16C
906 OK L764 65 - 190 225/75R16C *); pickup truck
35 235/65R16C (series);
1); 2); 33)
906AC35G e1*2007/46*0569*.. 115 225/75R16C 1); 2); 33)
235/65R16C
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 21-00320-CX-GBM-01
zur Erteilung der ECE (E1) 124R- 001035
ANLAGE: 9.2 Radtyp: 16656130-79
Hersteller: MW Aftermarket Srl Stand: 24.09.2021
______________________________________________________________________________________________________________
Seite: 3 von 5
Verkaufsbezeichnung: SPRINTER
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
906BA30 e1*2007/46*0280*.. 70 - 190 205/75R16C 1); 2); 33)
110R
906BB30 e1*2007/46*0279*.. 225/75R16C
116R
225/75R16C
118P
235/65R16C
115R
906BA30 e1*2007/46*0280*.. 70 - 190 205/75R16C 1); 2); 33)
110R
906BB30 e1*2007/46*0279*.. 225/75R16C
116R
225/75R16C
118P
235/65R16C
115R
R124 E1*124R00/02*1035*01
906BA35 e1*2007/46*0300*.. 70 - 190 225/75R16C 1); 2); 33)
116R
906BB35 e1*2007/46*0301*.. 225/75R16C
118P
235/65R16C
115R
235/65R16C
121N
120 - 190 235/65R16C
118R
906BA35 e1*2007/46*0300*.. 70 - 190 225/75R16C 1); 2); 33)
116R
906BB35 e1*2007/46*0301*.. 225/75R16C
118P
235/65R16C
115R
235/65R16C
121N
120 - 190 235/65R16C
118R
906BA35 e1*2007/46*0300*.. 84 - 140 225/75R16C 1); 2); 33)
235/65R16C
906BB35 e1*2007/46*0301*.. 84 - 140 235/65R16C 1); 2); 33)
906BB35 e1*2007/46*0301*.. 84 - 140 225/75R16 1); 2); 33)
235/65R16
Verkaufsbezeichnung: SPRINTER 4x4
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
906 AC e1*2001/116*0424*.. 80 - 140 225/75R16C 116 1); 2); 33)
35/4x4
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 21-00320-CX-GBM-01
zur Erteilung der ECE (E1) 124R- 001035
ANLAGE: 9.2 Radtyp: 16656130-79
Hersteller: MW Aftermarket Srl Stand: 24.09.2021
______________________________________________________________________________________________________________
Seite: 4 von 5
Verkaufsbezeichnung: SPRINTER 4x4
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
906 AC e1*2001/116*0424*.. 80 - 120 225/75R16C 1); 2); 33)
35/4x4 140 225/75R16C
906 KA L970 80 - 140 225/75R16C 1); 2); 33)
35/4x4
906 KA L970 80 - 140 225/75R16C 1); 2); 33)
35/4x4
906 OK L969 80 - 140 225/75R16C *); pickup truck
35/4x4 (series);
1); 2); 33)
906 OK L969 80 - 140 225/75R16C 1); 2); 33)
35/4x4
906BA35/4x4 e1*2007/46*0309*.. 95 - 140 225/75R16C 1); 2); 33)
906BA35/4x4 e1*2007/46*0309*.. 95 - 140 225/75R16C 1); 2); 33)
906BA35/4x4 e1*2007/46*0309*.. 95 - 140 225/75R16C 1); 2); 33)
906BA35/4x4 e1*2007/46*0312*.. 95 - 140 225/75R16C 1); 2); 33)
116R
R124 E1*124R00/02*1035*01
906BA35/4x4 e1*2007/46*0312*.. 95 - 140 225/75R16C 1); 2); 33)
116R
906BB35/4x4 e1*2007/46*0305*.. 95 - 140 225/75R16C 116 1); 2); 33)
906BB35/4x4 e1*2007/46*0305*.. 95 - 140 225/75R16C 116 1); 2); 33)
906BB35/4x4 e1*2007/46*0310*.. 95 - 140 225/75R16C 1); 2); 33)
*) Die unter "Auflagen" angeführten Bemerkungen sind einzuhalten. Ist zusätzlich auch die Verkaufs - oder
Handelsbezeichnung für ein oder mehrere Fahrzeugmodelle unter "Auflagen" angeführt, so sind nur diese
Fahrzeugmodelle zulässig. Alle anderen Fahrzeuge zu diesem Verwendungsbereich sind davon nicht betroffen.
*) The remark s under the listed restrictions/conditions are to be k ept. If additional trademark s or sale- names are
listed, so there are only this vehicles permissible. All other vehicles to this one application are not concerned.
Hinweise / Restrictions
1) Einzuhalten sind die Vorgaben des Fahrzeugherstellers gem. WVTA im Bezug auf:
- Serienmäßige Radgröße und Einpreßtiefe
- Reifengröße mit Betriebskennung (Last und Geschwindigkeitsindex) und
Beschränkungen auf Winterreifen (M+S)
- Auflagen und Einschränkungen sowie die Verwendung von Schneeketten aus der Betriebserlaubnis
und Betriebsanleitung.
To be k ept:
- tyre size with service description (load and speed index) and tyre brand commitments
- as well as limitations to snow tyres (M+S) from the car documents.
- Fixing parts and accessories of the vehicle manufacturer for the corresponding series -wheel.
- requirements and limitations of snow chains from the operating licence and the operation manual.
2) Nur zulässig an Fahrzeugausführungen, die serienmäßig Stahlräder verwenden dürfen.
Only permissible at vehicle models, which are allowed to use steel wheels as standard.
33) Es sind die serienmäßigen Befestigungsteile und das Zubehör des Fahrzeugherstellers für das
entsprechende Serienrad zu verwenden.Zum Auswuchten dürfen nur die handelsüblichen Wuchtgewichte
für Stahlfelgen zum Einsatz gebracht werden.
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 21-00320-CX-GBM-01
zur Erteilung der ECE (E1) 124R- 001035
ANLAGE: 9.2 Radtyp: 16656130-79
Hersteller: MW Aftermarket Srl Stand: 24.09.2021
______________________________________________________________________________________________________________
Seite: 5 von 5
The standard fixing parts and accessories of the vehicle manufacturer for the corresponding series -wheel
must be used.
R124 E1*124R00/02*1035*01
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Istruzioni di montaggio per ruote
1. Controllare la ruota in acciaio prima del montaggio per verificare che non siano presenti danni
2. Utilizzare i pneumatici che sono indicati nel libretto di circolazione
3. ATTENZIONE ! Il montaggio deve essere eseguito da personale specializzato.
4. Portare in posizione il foro centrale della ruota al centrante del mozzo e appoggiare il piano del disco al piano del mozzo.
a- Verificare che i bulloni siano compatibili con i fori di fissaggio della ruota
b- Verificare che la lunghezza dei bulloni sia conforme per il montaggio
c- Tenere la ruota con una mano e avvitare i bulloni partendo dal foro attacco più basso
d- Avvitare i bulloni con sequenza incrociata tra loro
e- Per il serraggio dei bulloni utilizzare un avvitatore con regolazione di coppia o una chiave dinamometrica, facendo
attenzione ad applicare la coppia di serraggio consigliata nel certificato in allegato per il tipo di veicolo pertinente.
ATTENZIONE ! In caso di serraggio non corretto, la ruota si può allentare, deformare e/o rompere
f- Ruotare la ruota montata sul mozzo per verificare che non vi siano interferenze con le pinze freno.
5. La ruota deve essere montata solo sui tipi di vettura indicati nel campo di applicazione in allegato.
6. ATTENZIONE ! Ad ogni cambio ruota e/o pneumatico i bulloni NON devono essere lubrificati e dopo i primi 50 km di guida,
se necessario, riserrare i bulloni con la coppia specifica consigliata. .
7. La pressione del pneumatico deve essere quella prescritta dal costruttore del veicolo .
8. L'uso delle catene da neve è consentito solo se il costruttore del veicolo lo prevede.
9. Non è consentito effettuare modifiche e/o riparazioni alla ruota
Installation instructions for wheels
1. Carefully check the steel wheel before installation to ensure it is not damaged
2. Only use tyres mentioned on the vehicle's registration document
3. WARNING ! Installation must be performed by qualified personnel
4. Position the wheel on the hub so that the center hole of the wheel corresponds to the centering of the hub, and
make sure the wheel disc has full contact with the hub flange.
a- Check that the bolts are compatible with the mounting holes of the wheel
b- Check that the length of the bolts is conform for mounting
c- Hold the wheel with one hand and tighten the bolts starting from the lowest one
d- Tighten the bolts in a criss-cross sequence
e- For tightening only use a screwer with torque control or a torque wrench, making sure you apply the specific torque
recommended for the relevant vehicle type on attached certificate.
WARNING ! Incorrect tightening may lead to self-loosening, deformation and/or damage of the wheel.
f- Turn the mounted wheel on the hub to make sure that there is no interference with the brake calipers
5. The wheel must be mounted only on the types of vehicle listed in the application field of the relevant certificate.
6. WARNING ! When changing wheel/tyre DO NOT lubricate bolts and after the first 50 Km of driving, if necessary ,retighten
the bolts with the specific torque recommended.
7. The tire pressure must be the one specified by the vehicle's manufacturer
8. The use of snow chains is only permitted if foreseen by the vehicle's manufacturer
9. Modifying and/or repairing of wheels is not allowed.
MW Aftermarket S.r.l. a Socio Unico
Direzione e Uffici: Via Gabriele D’Annunzio 2 • 21010 Vizzola Ticino (VA) • Italia
Tel. +39-0331-232.111 • Fax +39-0331-232.199
C.F. e P. IVA IT 10461580010 • R.E.A. CCIAA TO-1135064
Sede Legale: Via Pavia 72 • 10098 Rivoli
Capitale Sociale Euro 10.000 i.v.
Società soggetta a direzione e coordinamento di C.L.N. SpA
