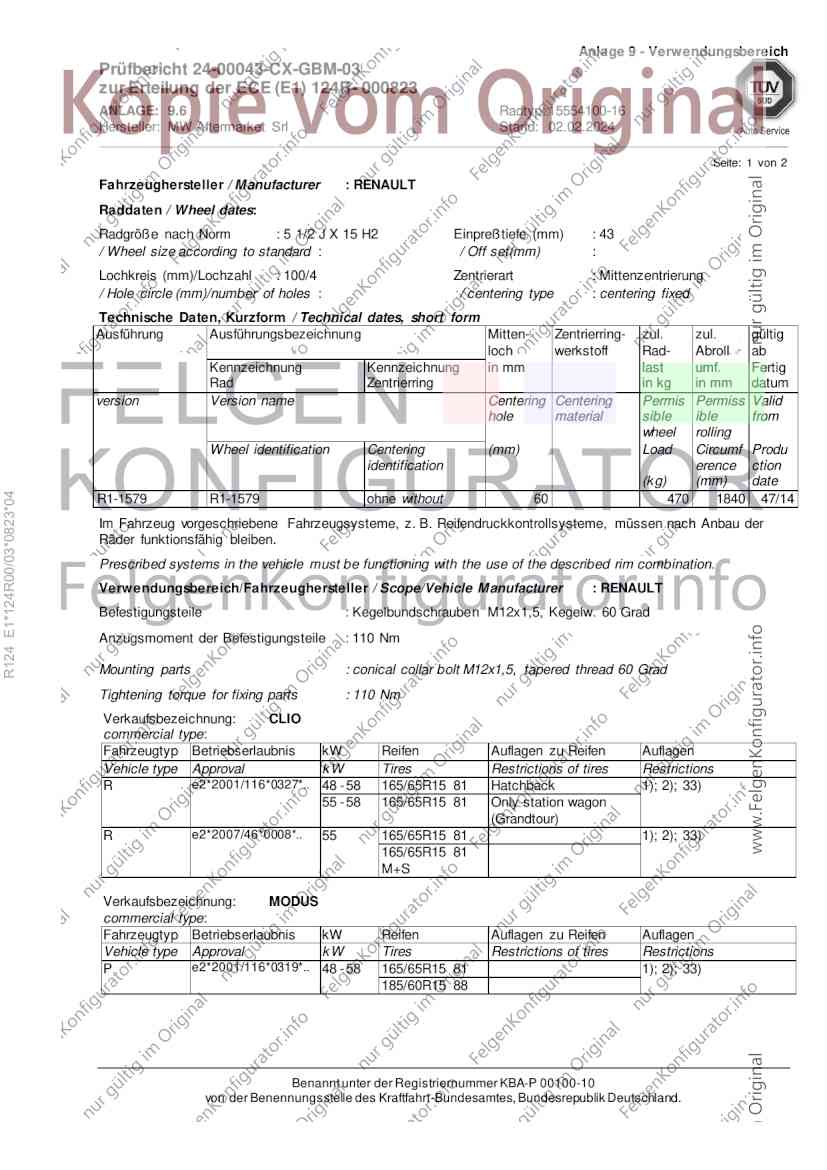

Anlage 9 - Verwendungsbereich
Prüfbericht 24-00043-CX-GBM-03
zur Erteilung der ECE (E1) 124R- 000823
ANLAGE: 9.6 Radtyp: 15554100-16
Hersteller: MW Aftermarket Srl Stand: 02.02.2024
______________________________________________________________________________________________________________
Seite: 1 von 2
Fahrzeughersteller / Manufacturer : RENAULT
Raddaten / Wheel dates:
Radgröße nach Norm : 5 1/2 J X 15 H2 Einpreßtiefe (mm) : 43
/ Wheel size according to standard : / Off set(mm) :
Lochkreis (mm)/Lochzahl : 100/4 Zentrierart : Mittenzentrierung
/ Hole circle (mm)/number of holes : / centering type : centering fixed
Technische Daten, Kurzform / Technical dates, short form
Ausführung Ausführungsbezeichnung Mitten- Zentrierring- zul. zul. gültig
loch werkstoff Rad- Abroll ab
Kennzeichnung Kennzeichnung in mm last umf. Fertig
Rad Zentrierring in kg in mm datum
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(k g) (mm) date
R124 E1*124R00/03*0823*04
R1-1579 R1-1579 ohne without 60 470 1840 47/14
Im Fahrzeug vorgeschriebene Fahrzeugsysteme, z. B. Reifendruckkontrollsysteme, müssen nach Anbau der
Räder funktionsfähig bleiben.
Prescribed systems in the vehicle must be functioning with the use of the described rim combination.
Verwendungsbereich/Fahrzeughersteller / Scope/Vehicle Manufacturer : RENAULT
Befestigungsteile : Kegelbundschrauben M12x1,5, Kegelw. 60 Grad
Anzugsmoment der Befestigungsteile : 110 Nm
Mounting parts : conical collar bolt M12x1,5, tapered thread 60 Grad
Tightening torque for fixing parts : 110 Nm
Verkaufsbezeichnung: CLIO
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
R e2*2001/116*0327*.. 48 - 58 165/65R15 81 Hatchback 1); 2); 33)
55 - 58 165/65R15 81 Only station wagon
(Grandtour)
R e2*2007/46*0008*.. 55 165/65R15 81 1); 2); 33)
165/65R15 81
M+S
Verkaufsbezeichnung: MODUS
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
P e2*2001/116*0319*.. 48 - 58 165/65R15 81 1); 2); 33)
185/60R15 88
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 24-00043-CX-GBM-03
zur Erteilung der ECE (E1) 124R- 000823
ANLAGE: 9.6 Radtyp: 15554100-16
Hersteller: MW Aftermarket Srl Stand: 02.02.2024
______________________________________________________________________________________________________________
Seite: 2 von 2
Verkaufsbezeichnung: MODUS
commercial type:
Fahrzeugtyp Betriebserlaubnis kW Reifen Auflagen zu Reifen Auflagen
Vehicle type Approval kW Tires Restrictions of tires Restrictions
P e2*2001/116*0319*.. 48 - 58 165/65R15 81 Modus (short axle) 1); 2); 33)
185/60R15 88 Modus (short axle)
M+S
55 - 58 165/65R15 81 Grand Modus
P e2*2007/46*0007*.. 55 165/65R15 81 1); 2); 33)
Hinweise / Restrictions
1) Einzuhalten sind die Vorgaben des Fahrzeugherstellers gem. WVTA im Bezug auf:
- Serienmäßige Radgröße und Einpreßtiefe
- Reifengröße mit Betriebskennung (Last und Geschwindigkeitsindex) und
Beschränkungen auf Winterreifen (M+S)
- Auflagen und Einschränkungen sowie die Verwendung von Schneeketten aus der Betriebserlaubnis
und Betriebsanleitung.
R124 E1*124R00/03*0823*04
To be k ept:
- tyre size with service description (load and speed index) and tyre brand commitments
- as well as limitations to snow tyres (M+S) from the car documents.
- Fixing parts and accessories of the vehicle manufacturer for the corresponding series -wheel.
- requirements and limitations of snow chains from the operating licence and the operation manual.
2) Nur zulässig an Fahrzeugausführungen, die serienmäßig Stahlräder verwenden dürfen.
Only permissible at vehicle models, which are allowed to use steel wheels as standard.
33) Es sind die serienmäßigen Befestigungsteile und das Zubehör des Fahrzeugherstellers für das
entsprechende Serienrad zu verwenden.Zum Auswuchten dürfen nur die handelsüblichen Wuchtgewichte
für Stahlfelgen zum Einsatz gebracht werden.
The standard fixing parts and accessories of the vehicle manufacturer for the corresponding series -wheel
must be used. Only commercially available balancing weights for steel wheels may be used for balancing.
Benannt unter der Registriernummer KBA-P 00100-10
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.

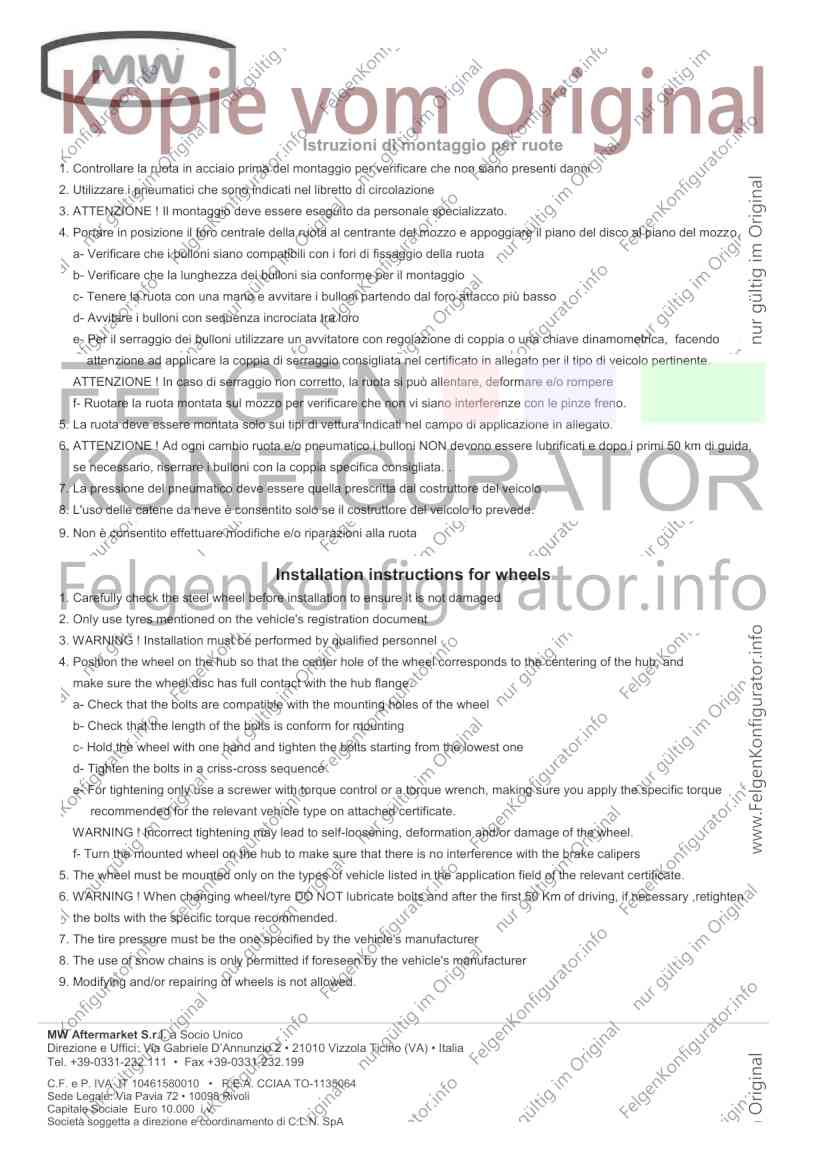

Istruzioni di montaggio per ruote
1. Controllare la ruota in acciaio prima del montaggio per verificare che non siano presenti danni
2. Utilizzare i pneumatici che sono indicati nel libretto di circolazione
3. ATTENZIONE ! Il montaggio deve essere eseguito da personale specializzato.
4. Portare in posizione il foro centrale della ruota al centrante del mozzo e appoggiare il piano del disco al piano del mozzo.
a- Verificare che i bulloni siano compatibili con i fori di fissaggio della ruota
b- Verificare che la lunghezza dei bulloni sia conforme per il montaggio
c- Tenere la ruota con una mano e avvitare i bulloni partendo dal foro attacco più basso
d- Avvitare i bulloni con sequenza incrociata tra loro
e- Per il serraggio dei bulloni utilizzare un avvitatore con regolazione di coppia o una chiave dinamometrica, facendo
attenzione ad applicare la coppia di serraggio consigliata nel certificato in allegato per il tipo di veicolo pertinente.
ATTENZIONE ! In caso di serraggio non corretto, la ruota si può allentare, deformare e/o rompere
f- Ruotare la ruota montata sul mozzo per verificare che non vi siano interferenze con le pinze freno.
5. La ruota deve essere montata solo sui tipi di vettura indicati nel campo di applicazione in allegato.
6. ATTENZIONE ! Ad ogni cambio ruota e/o pneumatico i bulloni NON devono essere lubrificati e dopo i primi 50 km di guida,
se necessario, riserrare i bulloni con la coppia specifica consigliata. .
7. La pressione del pneumatico deve essere quella prescritta dal costruttore del veicolo .
8. L'uso delle catene da neve è consentito solo se il costruttore del veicolo lo prevede.
9. Non è consentito effettuare modifiche e/o riparazioni alla ruota
Installation instructions for wheels
1. Carefully check the steel wheel before installation to ensure it is not damaged
2. Only use tyres mentioned on the vehicle's registration document
3. WARNING ! Installation must be performed by qualified personnel
4. Position the wheel on the hub so that the center hole of the wheel corresponds to the centering of the hub, and
make sure the wheel disc has full contact with the hub flange.
a- Check that the bolts are compatible with the mounting holes of the wheel
b- Check that the length of the bolts is conform for mounting
c- Hold the wheel with one hand and tighten the bolts starting from the lowest one
d- Tighten the bolts in a criss-cross sequence
e- For tightening only use a screwer with torque control or a torque wrench, making sure you apply the specific torque
recommended for the relevant vehicle type on attached certificate.
WARNING ! Incorrect tightening may lead to self-loosening, deformation and/or damage of the wheel.
f- Turn the mounted wheel on the hub to make sure that there is no interference with the brake calipers
5. The wheel must be mounted only on the types of vehicle listed in the application field of the relevant certificate.
6. WARNING ! When changing wheel/tyre DO NOT lubricate bolts and after the first 50 Km of driving, if necessary ,retighten
the bolts with the specific torque recommended.
7. The tire pressure must be the one specified by the vehicle's manufacturer
8. The use of snow chains is only permitted if foreseen by the vehicle's manufacturer
9. Modifying and/or repairing of wheels is not allowed.
