Anlage 9 - Verwendungsbereich
Prüfbericht 366-0333-14-WIRD
zur Erteilung der ECE (E1) 124R- 000771
ANLAGE: 9.11 Radtyp: 608
Hersteller: Momo S.r.l. Stand: 20.01.2015
__________________________________________________________________________________________________________________

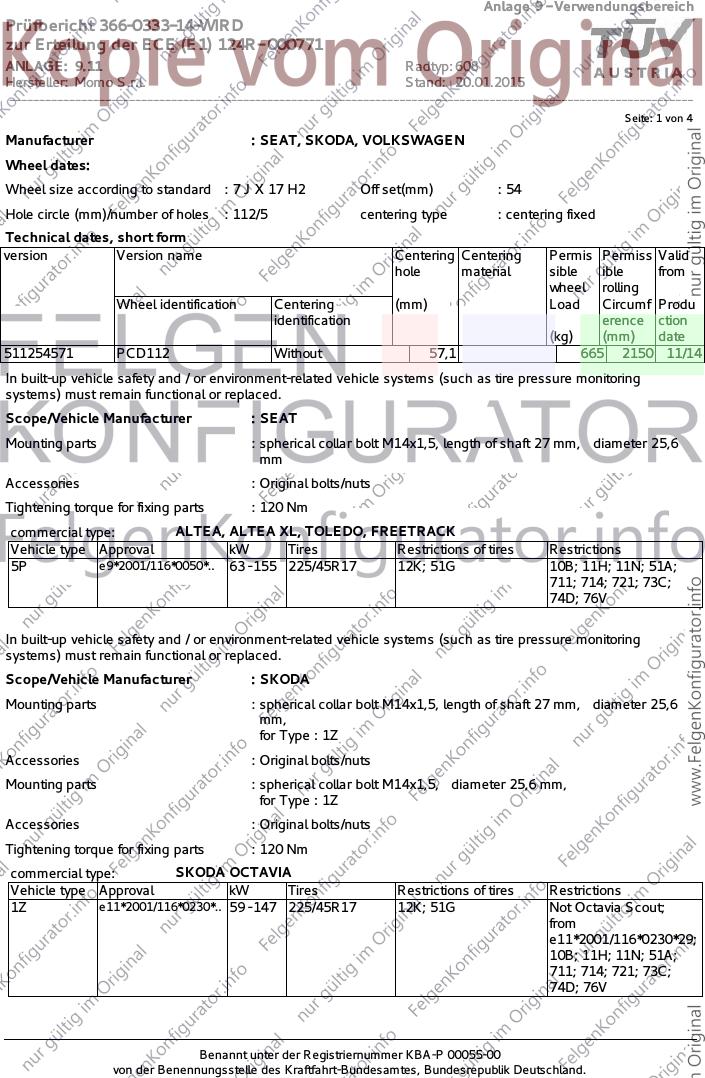

Seite: 1 von 4
Manufacturer : SEAT, SKODA, VOLKSWAGEN
Wheel dates:
Wheel size according to standard : 7 J X 17 H2 Off set(mm) : 54
Hole circle (mm)/number of holes : 112/5 centering type : centering fixed
Technical dates, short form
version Version name Centering Centering Permis Permiss Valid
hole material sible ible from
wheel rolling
Wheel identification Centering (mm) Load Circumf Produ
identification erence ction
(kg) (mm) date
511254571 PCD112 Without 57,1 665 2150 11/14
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : SEAT
Mounting parts : spherical collar bolt M14x1,5, length of shaft 27 mm, diameter 25,6
mm
Accessories : Original bolts/nuts
Tightening torque for fixing parts : 120 Nm
commercial type: ALTEA, ALTEA XL, TOLEDO, FREETRACK
Vehicle type Approval kW Tires Restrictions of tires Restrictions
5P e9*2001/116*0050*.. 63 - 155 225/45R17 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : SKODA
Mounting parts : spherical collar bolt M14x1,5, length of shaft 27 mm, diameter 25,6
mm,
for Type : 1Z
Accessories : Original bolts/nuts
Mounting parts : spherical collar bolt M14x1,5, diameter 25,6 mm,
for Type : 1Z
Accessories : Original bolts/nuts
Tightening torque for fixing parts : 120 Nm
commercial type: SKODA OCTAVIA
Vehicle type Approval kW Tires Restrictions of tires Restrictions
1Z e11*2001/116*0230*.. 59 - 147 225/45R17 12K; 51G Not Octavia Scout;
from
e11*2001/116*0230*29;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 366-0333-14-WIRD
zur Erteilung der ECE (E1) 124R- 000771
ANLAGE: 9.11 Radtyp: 608
Hersteller: Momo S.r.l. Stand: 20.01.2015
__________________________________________________________________________________________________________________

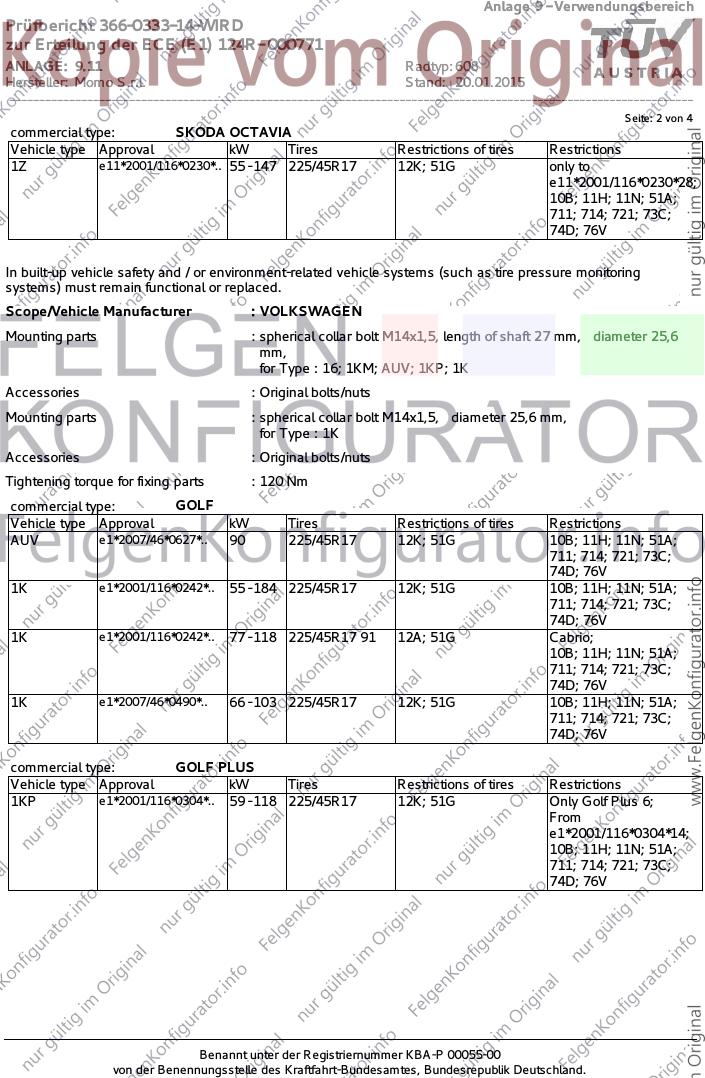

Seite: 2 von 4
commercial type: SKODA OCTAVIA
Vehicle type Approval kW Tires Restrictions of tires Restrictions
1Z e11*2001/116*0230*.. 55 - 147 225/45R17 12K; 51G only to
e11*2001/116*0230*28;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
In built-up vehicle safety and / or environment-related vehicle systems (such as tire pressure monitoring
systems) must remain functional or replaced.
Scope/Vehicle Manufacturer : VOLKSWAGEN
Mounting parts : spherical collar bolt M14x1,5, length of shaft 27 mm, diameter 25,6
mm,
for Type : 16; 1KM; AUV; 1KP; 1K
Accessories : Original bolts/nuts
Mounting parts : spherical collar bolt M14x1,5, diameter 25,6 mm,
for Type : 1K
Accessories : Original bolts/nuts
Tightening torque for fixing parts : 120 Nm
commercial type: GOLF
Vehicle type Approval kW Tires Restrictions of tires Restrictions
AUV e1*2007/46*0627*.. 90 225/45R17 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
1K e1*2001/116*0242*.. 55 - 184 225/45R17 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
1K e1*2001/116*0242*.. 77 - 118 225/45R17 91 12A; 51G Cabrio;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
1K e1*2007/46*0490*.. 66 - 103 225/45R17 12K; 51G 10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
commercial type: GOLF PLUS
Vehicle type Approval kW Tires Restrictions of tires Restrictions
1KP e1*2001/116*0304*.. 59 - 118 225/45R17 12K; 51G Only Golf Plus 6;
From
e1*2001/116*0304*14;
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 366-0333-14-WIRD
zur Erteilung der ECE (E1) 124R- 000771
ANLAGE: 9.11 Radtyp: 608
Hersteller: Momo S.r.l. Stand: 20.01.2015
__________________________________________________________________________________________________________________

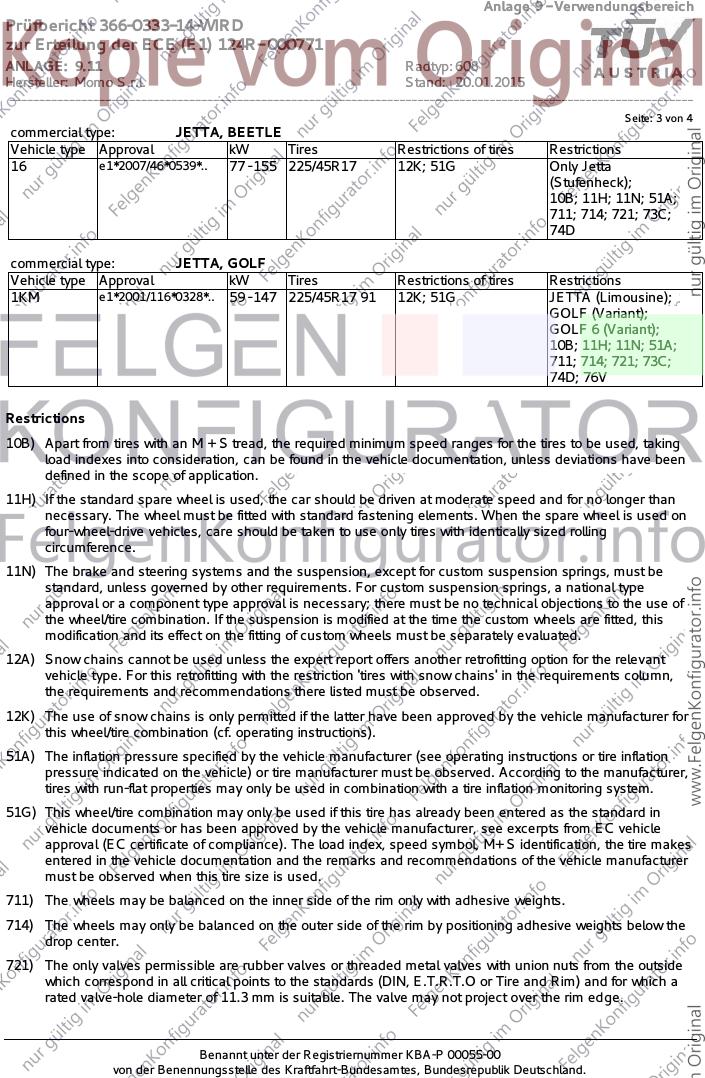

Seite: 3 von 4
commercial type: JETTA, BEETLE
Vehicle type Approval kW Tires Restrictions of tires Restrictions
16 e1*2007/46*0539*.. 77 - 155 225/45R17 12K; 51G Only Jetta
(Stufenheck);
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D
commercial type: JETTA, GOLF
Vehicle type Approval kW Tires Restrictions of tires Restrictions
1KM e1*2001/116*0328*.. 59 - 147 225/45R17 91 12K; 51G JETTA (Limousine);
GOLF (Variant);
GOLF 6 (Variant);
10B; 11H; 11N; 51A;
711; 714; 721; 73C;
74D; 76V
Restrictions
10B) Apart from tires with an M + S tread, the required minimum speed ranges for the tires to be used, taking
load indexes into consideration, can be found in the vehicle documentation, unless deviations have been
defined in the scope of application.
11H) If the standard spare wheel is used, the car should be driven at moderate speed and for no longer than
necessary. The wheel must be fitted with standard fastening elements. When the spare wheel is used on
four-wheel-drive vehicles, care should be taken to use only tires with identically sized rolling
circumference.
11N) The brake and steering systems and the suspension, except for custom suspension springs, must be
standard, unless governed by other requirements. For custom suspension springs, a national type
approval or a component type approval is necessary; there must be no technical objections to the use of
the wheel/tire combination. If the suspension is modified at the time the custom wheels are fitted, this
modification and its effect on the fitting of custom wheels must be separately evaluated.
12A) Snow chains cannot be used unless the expert report offers another retrofitting option for the relevant
vehicle type. For this retrofitting with the restriction 'tires with snow chains' in the requirements column,
the requirements and recommendations there listed must be observed.
12K) The use of snow chains is only permitted if the latter have been approved by the vehicle manufacturer for
this wheel/tire combination (cf. operating instructions).
51A) The inflation pressure specified by the vehicle manufacturer (see operating instructions or tire inflation
pressure indicated on the vehicle) or tire manufacturer must be observed. According to the manufacturer,
tires with run-flat properties may only be used in combination with a tire inflation monitoring system.
51G) This wheel/tire combination may only be used if this tire has already been entered as the standard in
vehicle documents or has been approved by the vehicle manufacturer, see excerpts from EC vehicle
approval (EC certificate of compliance). The load index, speed symbol, M+ S identification, the tire makes
entered in the vehicle documentation and the remarks and recommendations of the vehicle manufacturer
must be observed when this tire size is used.
711) The wheels may be balanced on the inner side of the rim only with adhesive weights.
714) The wheels may only be balanced on the outer side of the rim by positioning adhesive weights below the
drop center.
721) The only valves permissible are rubber valves or threaded metal valves with union nuts from the outside
which correspond in all critical points to the standards (DIN, E.T.R.T.O or Tire and Rim) and for which a
rated valve-hole diameter of 11.3 mm is suitable. The valve may not project over the rim edge.
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
Anlage 9 - Verwendungsbereich
Prüfbericht 366-0333-14-WIRD
zur Erteilung der ECE (E1) 124R- 000771
ANLAGE: 9.11 Radtyp: 608
Hersteller: Momo S.r.l. Stand: 20.01.2015
__________________________________________________________________________________________________________________

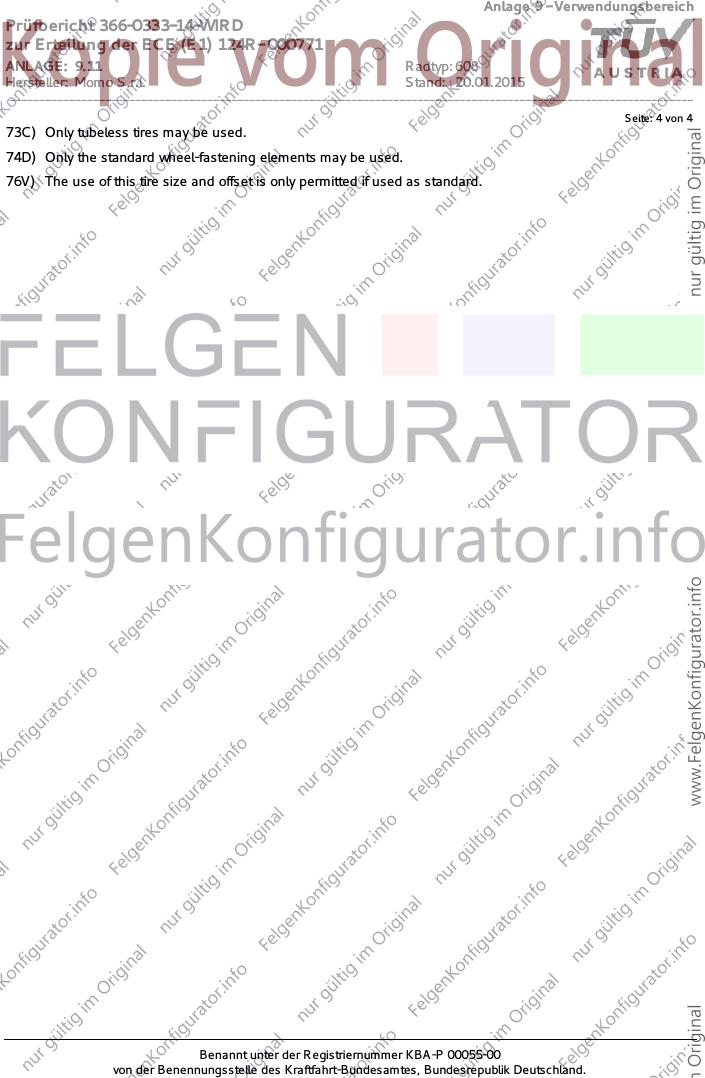

Seite: 4 von 4
73C) Only tubeless tires may be used.
74D) Only the standard wheel-fastening elements may be used.
76V) The use of this tire size and offset is only permitted if used as standard.
Benannt unter der Registriernummer KBA-P 00055-00
von der Benennungsstelle des Kraftfahrt-Bundesamtes, Bundesrepublik Deutschland.
