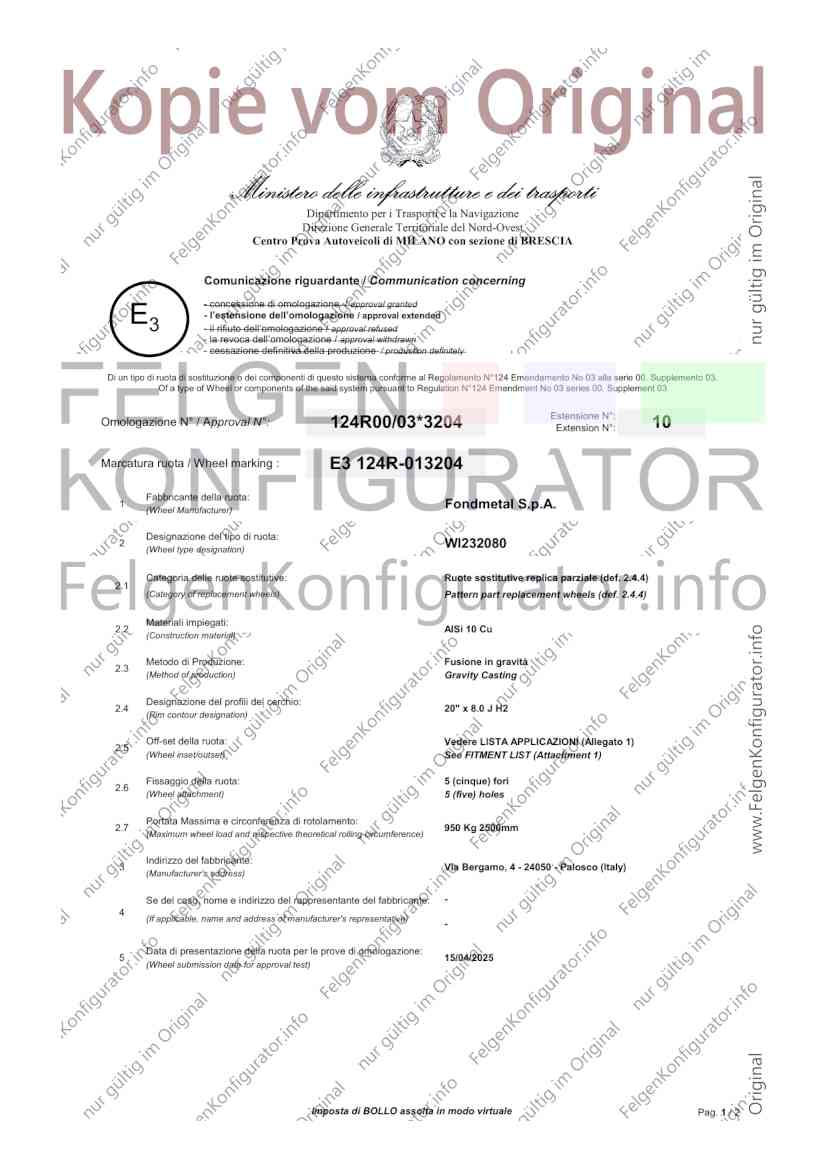

Ministero delle infrastrutture e dei trasporti
Dipartimento per i Trasporti e la Navigazione
Direzione Generale Territoriale del Nord-Ovest
Centro Prova Autoveicoli di MILANO con sezione di BRESCIA
Comunicazione riguardante / Communication concerning
E3
- concessione di omologazione / approval granted
- l’estensione dell’omologazione / approval extended
- il rifiuto dell’omologazione / approval refused
- la revoca dell’omologazione / approval withdrawn
- cessazione definitiva della produzione / production definitely
Di un tipo di ruota di sostituzione o dei componenti di questo sistema conforme al Regolamento N°124 Emendamento No 03 alla serie 00. Supplemento 03.
Of a type of Wheel or components of the said system pursuant to Regulation N°124 Emendment No 03 series 00. Supplement 03
Estensione N°:
Omologazione N° / Approval N°: 124R00/03*3204 Extension N°: 10
Marcatura ruota / Wheel marking : E3 124R-013204
Fabbricante della ruota:
1
(Wheel Manufacturer)
Fondmetal S.p.A.
Designazione del tipo di ruota:
2
(Wheel type designation)
WI232080
Categoria delle ruote sostitutive: Ruote sostitutive replica parziale (def. 2.4.4)
2.1
(Category of replacement wheels) Pattern part replacement wheels (def. 2.4.4)
Materiali impiegati:
2.2 AlSi 10 Cu
(Construction material)
Metodo di Produzione: Fusione in gravità
2.3
(Method of production) Gravity Casting
Designazione del profili del cerchio:
2.4 20" x 8.0 J H2
(Rim contour designation)
Off-set della ruota: Vedere LISTA APPLICAZIONI (Allegato 1)
2.5
(Wheel inset/outset) See FITMENT LIST (Attachment 1)
Fissaggio della ruota: 5 (cinque) fori
2.6
(Wheel attachment) 5 (five) holes
Portata Massima e circonferenza di rotolamento:
2.7 950 Kg 2500mm
(Maximum wheel load and respective theoretical rolling circumference)
Indirizzo del fabbricante:
3 Via Bergamo, 4 - 24050 - Palosco (Italy)
(Manufacturer's address)
Se del caso, nome e indirizzo del rappresentante del fabbricante: -
4
(If applicable, name and address of manufacturer's representative)
-
Data di presentazione della ruota per le prove di omologazione:
5 15/04/2025
(Wheel submission date for approval test)
Imposta di BOLLO assolta in modo virtuale Pag. 1 / 2
124R00/03*3204 Estensione N° / Extension N°: 10

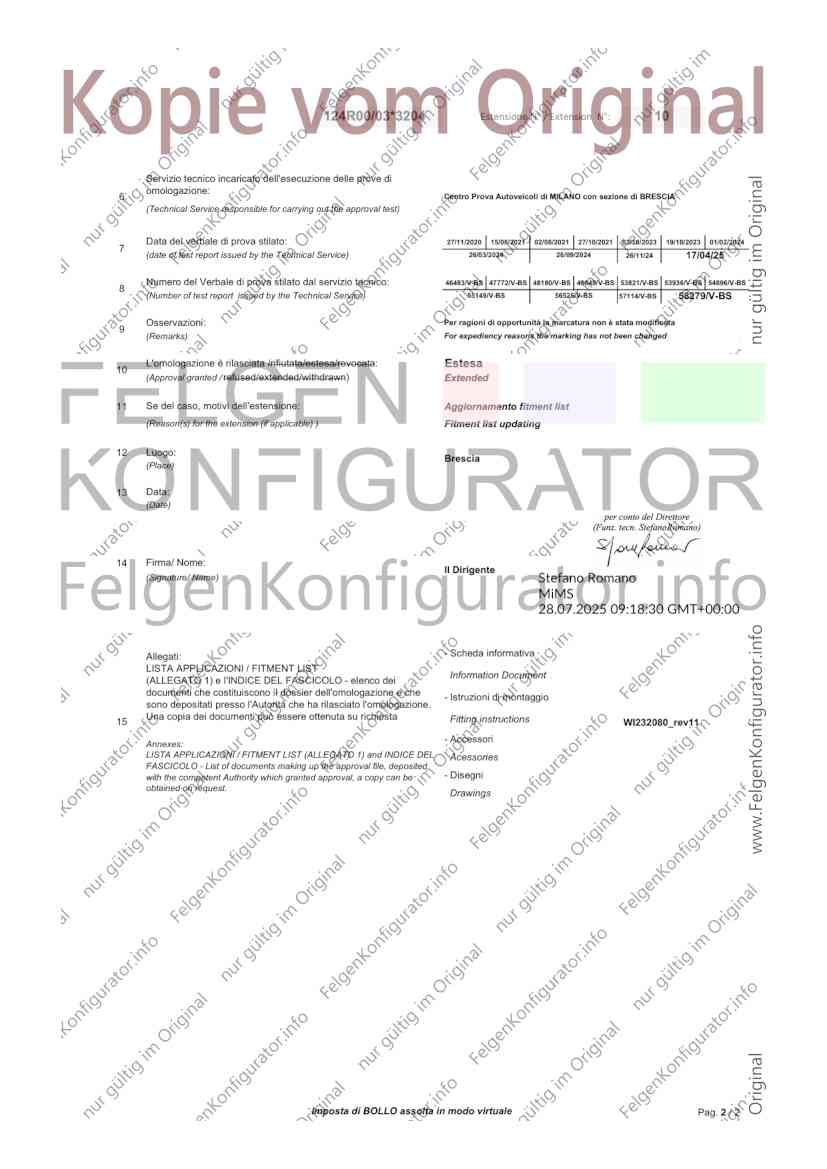

Servizio tecnico incaricato dell'esecuzione delle prove di
omologazione:
6 Centro Prova Autoveicoli di MILANO con sezione di BRESCIA
(Technical Service responsible for carrying out the approval test)
Data del verbale di prova stilato: 27/11/2020 15/06/2021 02/08/2021 27/10/2021 03/10/2023 19/10/2023 01/02/2024
7
(date of test report issued by the Technical Service) 26/03/2024 26/09/2024 26/11/24 17/04/25
Numero del Verbale di prova stilato dal servizio tecnico: 46483/V-BS 47772/V-BS 48180/V-BS 48649/V-BS 53821/V-BS 53936/V-BS 54696/V-BS
8
(Number of test report issued by the Technical Service) 55149/V-BS 56525/V-BS 57114/V-BS 58279/V-BS
Osservazioni: Per ragioni di opportunità la marcatura non è stata modificata
9
(Remarks) For expediency reasons the marking has not been changed
10
L'omologazione è rilasciata /rifiutata/estesa/revocata: Estesa
(Approval granted / refused/extended/withdrawn) Extended
11 Se del caso, motivi dell'estensione: Aggiornamento fitment list
(Reason(s) for the extension (if applicable) ) Fitment list updating
12 Luogo:
Brescia
(Place)
13 Data:
(Date)
14 Firma/ Nome:
Il Dirigente
(Signature/ Name) G
M
Allegati: - Scheda informativa
LISTA APPLICAZIONI / FITMENT LIST
Information Document
(ALLEGATO 1) e l'INDICE DEL FASCICOLO - elenco dei
documenti che costituiscono il dossier dell'omologazione e che
- Istruzioni di montaggio
sono depositati presso l'Autorità che ha rilasciato l'omologazione.
Una copia dei documenti può essere ottenuta su richiesta Fitting instructions
15 WI232080_rev11
Annexes: - Accessori
LISTA APPLICAZIONI / FITMENT LIST (ALLEGATO 1) and INDICE DEL Acessories
FASCICOLO - List of documents making up the approval file, deposited
with the competent Authority which granted approval, a copy can be - Disegni
obtained on request.
Drawings
Imposta di BOLLO assolta in modo virtuale Pag. 2 / 2
Approval n°: E3 124R-00/03*3204*10
LISTA APPLICAZIONI / FITMENT LIST (ALLEGATO 1)
Wheel marking: E3 124R-013204
Ministero delle infrastrutture e dei trasporti Il Dirigente
Dipartimento per i Trasporti e la Navigazione
Direzione Generale Territoriale del Nord-Ovest Documento firmato digitalmente
Centro Prova Autoveicoli di MILANO con sezione di BRESCIA Digitally signed document
Omologazione globale Pneumatico e
Anello
Costruttore Tipo Centra Offset Vite / Dado
Denominazione Commerciale 3.1.3. Europea Codice del Cerchio PCD realtive note Note
3.1.3. 3.1.3. ggio 3.1.2.2 3.1.2.5
3.1.3. 3.1.2.12.
Manufacturer Car model From 2019 Type Eu Homologation Wheel part number C.B. ET Rings Bolt / Nut Tyre Note
Audi Q4 e-tron 2021 FZ e1*2018/858*00006*.. WI232080 45_5_112M 5x112 57.1 45 - OE BOLT OE 235/50 R20 Only front
e1*2007/46*1550*..
Audi Q5 2017 2024 FY WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
e1*2007/46*1685*..
FY
Audi Q5 2025 e1*2007/46*1550*.. WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
(GUB)
Audi Q5 Sportback 2021 2024 FY e1*2007/46*1550*.. WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
FY
Audi Q5 Sportback 2025 e1*2007/46*1550*.. WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
(GUN)
SQ5 / SQ5 e1*2007/46*1550*..
Audi 2018 2024 FY WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
Sportback e1*2007/46*1685*..
SQ5 / SQ5 FY e1*2007/46*1550*..,
Audi 2025 WI232080 39_5_112P 5x112 66.5 39 - OE BOLT OE 255/45 R20
Sportback (GUB, GUN) e1*2007/46*1685*..
BYD Sealion 7 2024 UK e9*2028/858*11658*.. WI232080 40_5_120 5x120 64.1 40 - OE NUT OE 245/45 R 20 only AWD
BYD Tang 2021 STE e9*KS18/858*11108*.. WI232080 41_5_120 5x120 64.1 41 - OE NUT OE 255/50 R20
Citroen / DS DS7 Crossback 2018 J e2*2007/46*0601*.. WI232080 44_5_108W 5x108 65.1 44 - 0V.V017 OE 235/45 R20
OE 215/45 R20
CUPRA (Seat) Born 2021 K1 e9*2018/858*04001.. WI232080 50_5_112M 5x112 57.1 50 - OE BOLT
OE 235/40 R20
Grandland (MK2)
Opel 2024 K e2*2018/858*00064*.. WI232080 43_5_114 5x114.3 65.1 43 - OE BOLT OE 235/50 R20
PHEV / EV
3008 (MK3)
Peugeot 2024 K e2*2018/858*00064*.. WI232080 43_5_114 5x114.3 65.1 43 - OE BOLT OE 235/50 R20
PHEV / e-3008
5008 (MK3)
Peugeot 2024 K e2*2018/858*00064*.. WI232080 43_5_114 5x114.3 65.1 43 - OE BOLT OE 235/50 R20
PHEV / e-5008
Renault Austral 2023 RHN e9*2018/858*3002* WI232080 40_5_114 5x114.3 66.1 40 - OE BOLT OE 235/45 R20
Renault Espace 6 2023 RHN e9*2018/858*3002* WI232080 40_5_114 5x114.3 66.1 40 - OE BOLT OE 235/45 R20
- OE 235/50 R20
Skoda Enyaq iV 2021 NY e8*2007/46*0416*.. WI232080 45_5_112M 5x112 57.1 45 OE BOLT
OE 235/50 R20 Only front
Pag. 1 di 2
Ministero delle infrastrutture e dei trasporti Il Dirigente
Dipartimento per i Trasporti e la Navigazione
Direzione Generale Territoriale del Nord-Ovest Documento firmato digitalmente
Centro Prova Autoveicoli di MILANO con sezione di BRESCIA Digitally signed document
Omologazione globale Pneumatico e
Anello
Costruttore Tipo Centra Offset Vite / Dado
Denominazione Commerciale 3.1.3. Europea Codice del Cerchio PCD realtive note Note
3.1.3. 3.1.3. ggio 3.1.2.2 3.1.2.5
3.1.3. 3.1.2.12.
Manufacturer Car model From 2019 Type Eu Homologation Wheel part number C.B. ET Rings Bolt / Nut Tyre Note
- OE 235/50 R20
Skoda Elroq 2024 NY e8*2007/46*0416*.. WI232080 45_5_112M 5x112 57.1 45 OE BOLT
OE 235/50 R20 Only front
Smart #3 2024 HC11 e1*2018/858*00349*. WI232080 48_5_108R 5x108 63,4 48,5 - OE BOLT OE 245/40 R20
Ssangyong
Actyon 2025 CWJ e6*2018/858*003325*.. WI232080 32_5_112 5x112 66.5 32.5 - OE BOLT OE 245/45 R 20
KGMobility
Volkswagen ID.3 2020 E1 e1*2007/46*2033*.. WI232080 47_5_112M 5x112 57,1 47 - OE BOLT OE 215/45 R20
- OE 235/50 R20
Volkswagen ID.4 2020 E2 e1*2018*858*00004*.. WI232080 45_5_112M 5x112 57.1 45 OE BOLT
- OE 235/50 R20 Only front
Volkswagen ID.5 2021 E2 e1*2018*858*00004*.. WI232080 45_5_112M 5x112 57.1 45 - OE BOLT OE 235/50 R20 Only front
Volkswagen Tayron 2024 R4 e1*2018/858*00403*.. WI232080 38_5_112M 5x112 57.1 38 - OE BOLT OE 235/45 R20
Volkswagen Tiguan 3 2024 CT e1*2018/858*00302*.. WI232080 38_5_112M 5x112 57.1 38 - OE BOLT OE 235/45 R20
Volvo EX30 2023 VS001 e9*2018/858*11478*.. WI232080 48_5_108R 5x108 63,4 48,5 - OE BOLT OE 245/40 R20
CONDIZIONI e NOTE GENERALI / GENERIC CONDITION and NOTE
NOTA PRELIMINARE Solo se indicato come equipaggiamento originale (previsto dal costruttore) sulla carta di circolazione del veicolo.
PRELIMINARY NOTE Only if mentioned as original equipment (allowed by vehicle manufacturer) on the vehicle documents.
CATENABILITA' In merito alla catenabilità delle configurazioni indicate fare riferimento alle prescrizioni del costruttore del veicolo.
CHAINABILITY For the chainability of the listed configurations, please refer to the vehicle manufacturer’s prescriptions.
In caso di bulloneria originale del costruttore del veicolo utilizzare la coppia di serraggio prevista dallo stesso costruttore del veicolo.
BULLONERIA - COPPIA DI SERRAGGIO In caso di bulloneria aftermarket fornita da FONDMETAL S.p.A. fare riferiemnto alla prescrizioni di montaggio indicate nell'apposito opuscolo informativo all'interno della
scatola ruota.
In the case of original bolts/nuts, please follow the vehicle manufacturer’s tightening torque recommendations.
BOLT TIGHTENING TORQUE
In the case of aftermarket bolts/nuts supplied by FONDMETAL S.p.A., please make reference to the prescriptions in the leaflet supplied with the wheel.
Fare riferimento alle prescrizioni del costruttore del veicolo normalmente riportate tramite etichette sulle portiere, o all’interno del tappo della benzina o riportate sul manuale
PRESSIONE PNEUMATICI CONSIGLIATA
uso e istruzioni
Please make reference to the vehicle manufacturer’s recommendations, which are normally specified through labels on the vehicle doors or inside the petrol tank plug, or
RECOMMENDED TYRE PRESSURE
mentioned in the vehicle instructions manual.
COMPATIBILITA' TPMS Fare riferimento alla specifica FONDMETAL - TPMS Compatibility
TPMS COMPATIBILITY Please make reference to the speficic FONDMETAL - TPMS Compatibility
Pag. 2 di 2
