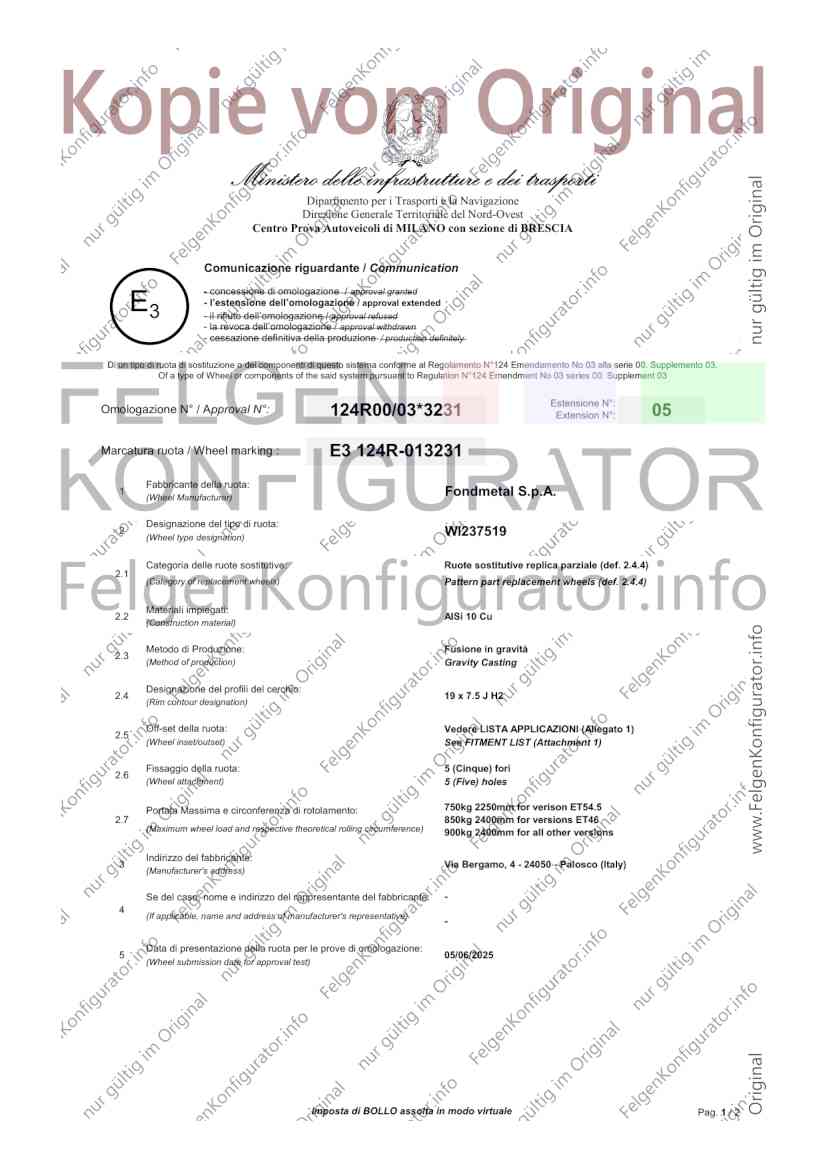

Ministero delle infrastrutture e dei trasporti
Dipartimento per i Trasporti e la Navigazione
Direzione Generale Territoriale del Nord-Ovest
Centro Prova Autoveicoli di MILANO con sezione di BRESCIA
Comunicazione riguardante / Communication
E3
- concessione di omologazione / approval granted
- l’estensione dell’omologazione / approval extended
- il rifiuto dell’omologazione / approval refused
- la revoca dell’omologazione / approval withdrawn
- cessazione definitiva della produzione / production definitely
Di un tipo di ruota di sostituzione o dei componenti di questo sistema conforme al Regolamento N°124 Emendamento No 03 alla serie 00. Supplemento 03.
Of a type of Wheel or components of the said system pursuant to Regulation N°124 Emendment No 03 series 00. Supplement 03
Estensione N°:
Omologazione N° / Approval N°: 124R00/03*3231 Extension N°: 05
Marcatura ruota / Wheel marking : E3 124R-013231
Fabbricante della ruota:
1
(Wheel Manufacturer)
Fondmetal S.p.A.
Designazione del tipo di ruota:
2
(Wheel type designation)
WI237519
Categoria delle ruote sostitutive: Ruote sostitutive replica parziale (def. 2.4.4)
2.1
(Category of replacement wheels) Pattern part replacement wheels (def. 2.4.4)
Materiali impiegati:
2.2 AlSi 10 Cu
(Construction material)
Metodo di Produzione: Fusione in gravità
2.3
(Method of production) Gravity Casting
Designazione del profili del cerchio:
2.4 19 x 7.5 J H2
(Rim contour designation)
Off-set della ruota: Vedere LISTA APPLICAZIONI (Allegato 1)
2.5
(Wheel inset/outset) See FITMENT LIST (Attachment 1)
Fissaggio della ruota: 5 (Cinque) fori
2.6
(Wheel attachment) 5 (Five) holes
Portata Massima e circonferenza di rotolamento: 750kg 2250mm for verison ET54.5
2.7 850kg 2400mm for versions ET46
(Maximum wheel load and respective theoretical rolling circumference) 900kg 2400mm for all other versions
Indirizzo del fabbricante:
3 Via Bergamo, 4 - 24050 - Palosco (Italy)
(Manufacturer's address)
Se del caso, nome e indirizzo del rappresentante del fabbricante: -
4
(If applicable, name and address of manufacturer's representative)
-
Data di presentazione della ruota per le prove di omologazione:
5 05/06/2025
(Wheel submission date for approval test)
Imposta di BOLLO assolta in modo virtuale Pag. 1 / 2

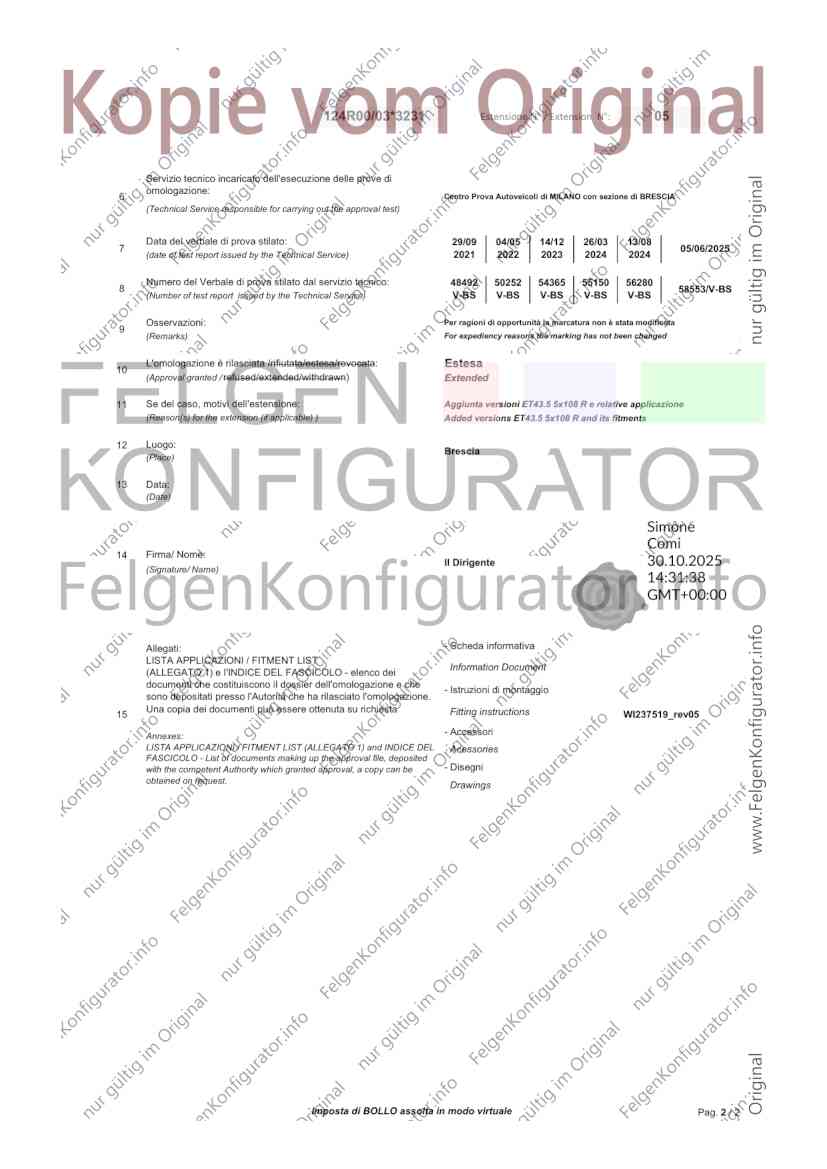

124R00/03*3231 Estensione N° / Extension N°: 05
Servizio tecnico incaricato dell'esecuzione delle prove di
omologazione:
6 Centro Prova Autoveicoli di MILANO con sezione di BRESCIA
(Technical Service responsible for carrying out the approval test)
Data del verbale di prova stilato: 29/09 04/05 14/12 26/03 13/08
7 05/06/2025
(date of test report issued by the Technical Service) 2021 2022 2023 2024 2024
Numero del Verbale di prova stilato dal servizio tecnico: 48492 50252 54365 55150 56280
8 58553/V-BS
(Number of test report issued by the Technical Service) V-BS V-BS V-BS V-BS V-BS
Osservazioni: Per ragioni di opportunità la marcatura non è stata modificata
9
(Remarks) For expediency reasons the marking has not been changed
10
L'omologazione è rilasciata /rifiutata/estesa/revocata: Estesa
(Approval granted / refused/extended/withdrawn) Extended
11 Se del caso, motivi dell'estensione: Aggiunta versioni ET43.5 5x108 R e relative applicazione
(Reason(s) for the extension (if applicable) ) Added versions ET43.5 5x108 R and its fitments
12 Luogo:
Brescia
(Place)
13 Data:
(Date)
C
C
14 Firma/ Nome:
(Signature/ Name)
Il Dirigente G
G G
Allegati: - Scheda informativa
LISTA APPLICAZIONI / FITMENT LIST
Information Document
(ALLEGATO 1) e l'INDICE DEL FASCICOLO - elenco dei
documenti che costituiscono il dossier dell'omologazione e che
- Istruzioni di montaggio
sono depositati presso l'Autorità che ha rilasciato l'omologazione.
Una copia dei documenti può essere ottenuta su richiesta Fitting instructions
15 WI237519_rev05
Annexes: - Accessori
LISTA APPLICAZIONI / FITMENT LIST (ALLEGATO 1) and INDICE DEL Acessories
FASCICOLO - List of documents making up the approval file, deposited
with the competent Authority which granted approval, a copy can be - Disegni
obtained on request.
Drawings
Imposta di BOLLO assolta in modo virtuale Pag. 2 / 2
Approval n°: E3 124R-00/03*3231*05
LISTA APPLICAZIONI / FITMENT LIST (ALLEGATO 1)
Wheel marking: E3 124R-013231
Ministero delle infrastrutture e dei trasporti Il Dirigente
Dipartimento per i Trasporti e la Navigazione
Direzione Generale Territoriale del Nord-Ovest Documento firmato digitalmente
Centro Prova Autoveicoli di MILANO con sezione di BRESCIA Digitally signed document
Omologazione globale Pneumatico e
Anello
Costruttore Tipo Centra Offset Vite / Dado
Denominazione Commerciale 3.1.3. Europea Codice del Cerchio PCD realtive note Note
3.1.3. 3.1.3. ggio 3.1.2.2 3.1.2.5
3.1.3. 3.1.2.12.
Manufacturer Car model From 2019 Type Eu Homologation Wheel part number C.B. ET Rings Bolt / Nut Tyre Note
e9*KS18/858*11477*..;
BYD Seal U 2024 SA3 WI237519 45_5_120 5x120 64,1 45 - OE NUT OE 235/50 R19
e9*2018/858*11535*..
BYD Sealion 7 2024 UK e9*2028/858*11658*.. WI237519 40_5_120 5x120 64,1 40 - OE NUT OE 235/50 R 19
CUPRA (Seat) Born 2021 K1 e9*2018/858*04001.. WI237519 50_5_112 5x112 57.1 50 - OE BOLT OE 215/50 R19
KIA EV6 2022 XCV, CV e9*2018/858*11073*.. WI237519 54_5_114 5x114.3 67.1 54.5 - OE NUT OE 235/55 R19
46_5_114 5x114.3 66.1 46 - OE BOLT OE 205/55 R19 FM CAP seat D.64mm
Renault Scenic 2024 RCB e2*2018/858*00018 WI237519
46_5_1141 5x114.3 66.1 46 - OE BOLT OE 205/55 R19 OE CAP seat D.58mm
Smart #5 2025 HY11 e1*2018/858*00532*.. WI237519 43_5_108R 5x108 63.4 43.5 - OE BOLT OE 245/50 R19
Skoda Kodiaq (MK2) 2024 PS e8*2018/858*00107*.. WI237519 40_5_112M 5x112 57,1 40 - OE BOLT OE 235/50 R19
Volkswagen ID.3 2020 E1 e1*2007/46*2033*.. WI237519 50_5_112 5x112 57.1 50 - OE BOLT OE 215/50 R19
Volkswagen Tayron 2024 R4 e1*2018/858*00403*.. WI237519 40_5_112M 5x112 57.1 40 - OE BOLT OE 235/50 R19
Volkswagen Tiguan 3 2024 CT e1*2018/858*00302*.. WI237519 40_5_112M 5x112 57.1 40 - OE BOLT OE 235/50 R19
CONDIZIONI e NOTE GENERALI / GENERIC CONDITION and NOTE
NOTA PRELIMINARE Solo se indicato come equipaggiamento originale (previsto dal costruttore) sulla carta di circolazione del veicolo.
PRELIMINARY NOTE Only if mentioned as original equipment (allowed by vehicle manufacturer) on the vehicle documents.
CATENABILITA' In merito alla catenabilità delle configurazioni indicate fare riferimento alle prescrizioni del costruttore del veicolo.
CHAINABILITY For the chainability of the listed configurations, please refer to the vehicle manufacturer’s prescriptions.
In caso di bulloneria originale del costruttore del veicolo utilizzare la coppia di serraggio prevista dallo stesso costruttore del veicolo.
BULLONERIA - COPPIA DI SERRAGGIO In caso di bulloneria aftermarket fornita da FONDMETAL S.p.A. fare riferiemnto alla prescrizioni di montaggio indicate nell'apposito opuscolo informativo all'interno della
scatola ruota.
In the case of original bolts/nuts, please follow the vehicle manufacturer’s tightening torque recommendations.
BOLT TIGHTENING TORQUE
In the case of aftermarket bolts/nuts supplied by FONDMETAL S.p.A., please make reference to the prescriptions in the leaflet supplied with the wheel.
Fare riferimento alle prescrizioni del costruttore del veicolo normalmente riportate tramite etichette sulle portiere, o all’interno del tappo della benzina o riportate sul
PRESSIONE PNEUMATICI CONSIGLIATA
manuale uso e istruzioni
Please make reference to the vehicle manufacturer’s recommendations, which are normally specified through labels on the vehicle doors or inside the petrol tank plug, or
RECOMMENDED TYRE PRESSURE
mentioned in the vehicle instructions manual.
COMPATIBILITA' TPMS Fare riferimento alla specifica FONDMETAL - TPMS Compatibility
TPMS COMPATIBILITY Please make reference to the speficic FONDMETAL - TPMS Compatibility
Pag. 1 di 1
